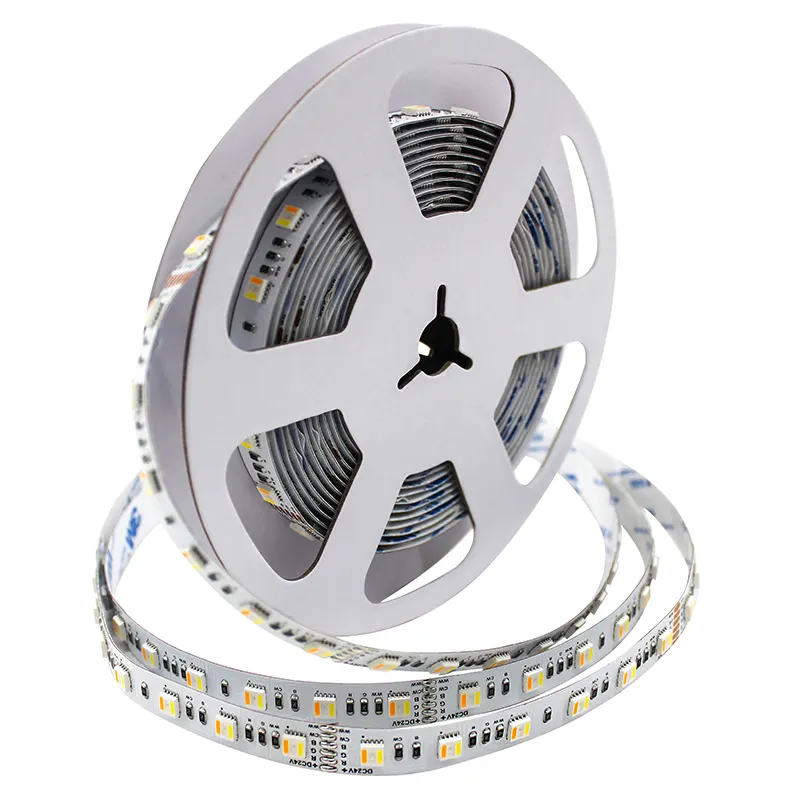

RGBWW Flex LED Strip with SMD5050 60LEDs/M

Standard RGBW LED strip uses a 4-in-1 LED chips made up of red, green, blue and white. Unitop latest RGBWW Flex LED Strip is using 5-in-1 LED chips with an extra white chip inside. It will produce even wider range of colors by mixing the five colors. You will find it is really amazing.

Modellszám.	UTFS-MC6060-2412RGBWW
LED mennyiség:	60db/m
Feszültség:	DC24V
Watt teljesítmény:	17W/M
Szín:	RGBWW

Leírás Specifikáció Alkalmazás GYIK Letöltések

RGBWW Flex LED Strip with SMD5050 60LEDs/M from Unitop

Standard brightness RGBWW flex LED strip version with just 60LEDs/M.

RGBWW means the LEDs are with totally 5 chips inside with different colors: Red, Green, Blue, and two different white colors. It again enrich the color variations.

OEM projects are acceptable for us, we love difficult jobs, and we would like to work with you to make masterpiece projects.

Unitop RGBWW Flex LED Strip has different colors as below:

Our RGBWW LED Flexible Strip comes with below IP rating options:

LED Flexibilis szalag IP-besorolási lehetőségek

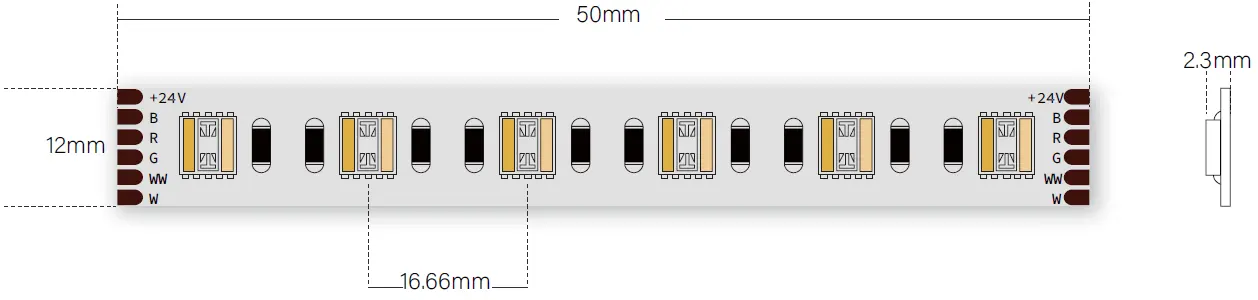

The cutting size of Unitop RGBWW Flex LED Strip:

This Unitop LED Light Strip RGBWW is with below lumen:

Színes
RGBWW(2300K+6000K)

Hatékonyság
56.30lm/W

Lumen/M
957.1lm/m

How to install our RGBWW Flexible LED Ribbon? You can find the wire diagram as below:

Szeretné tudni a csomagolási információkat? Lásd alább:

Az alábbi két figyelmeztetés a legnagyobb figyelmet igényli:

Please also pay attention to below issues while installing our RGBWW Flex LED Strip:

DO NOT mount the RGBWW LED strip entirely on an edge (i.e. the end of the strip should be at least 2″ away from any surface).

Take care not to tear or stretch the RGBWW strip as this will cause damage.

The RGBWW LED flexible strip works best on a clean surface. The surface should be free of dirt, dust, grease, oil, etc. Use the supplied alcohol wipe to clean the surface before installation.

The RGBWW LED flexible strip is only compatible with 24 volt DC power sources.

RGBWW Flex LED Strip with SMD5050 60LEDs/M has a variety of applications.

Lighting for homes, offices, and other indoor spaces

Outdoor lighting for streets, walkways, billboards, and more

Signage for businesses, airports, etc.

Furniture and architecture for store displays, museums, etc.

Aesthetic purposes to brighten up a space with an appropriate color

Az alábbiakban néhány példát talál az alkalmazásokra:

Konyhai világítás

Hálószoba világítás

Kereskedelmi világítás

Étterem világítás

FAQ of Unitop RGBWW Flex LED Strip with SMD5050 60LEDs/M:

What is the meaning of RGBWW?

RGBWW means 5 chips in one single LEDs: Red, Green, Blue, White, White(you can choose which white you need).

How long do RGBWW LED light strips last for?

LEDs have an extremely long expected life-span, compared to both fluorescent as well as incandescent lights. With an ordinary life-expectancy of some 50,000 hrs, LED strip lights will certainly still be lighting on in 17 years’ time, long after their standard equivalents will have run out.
