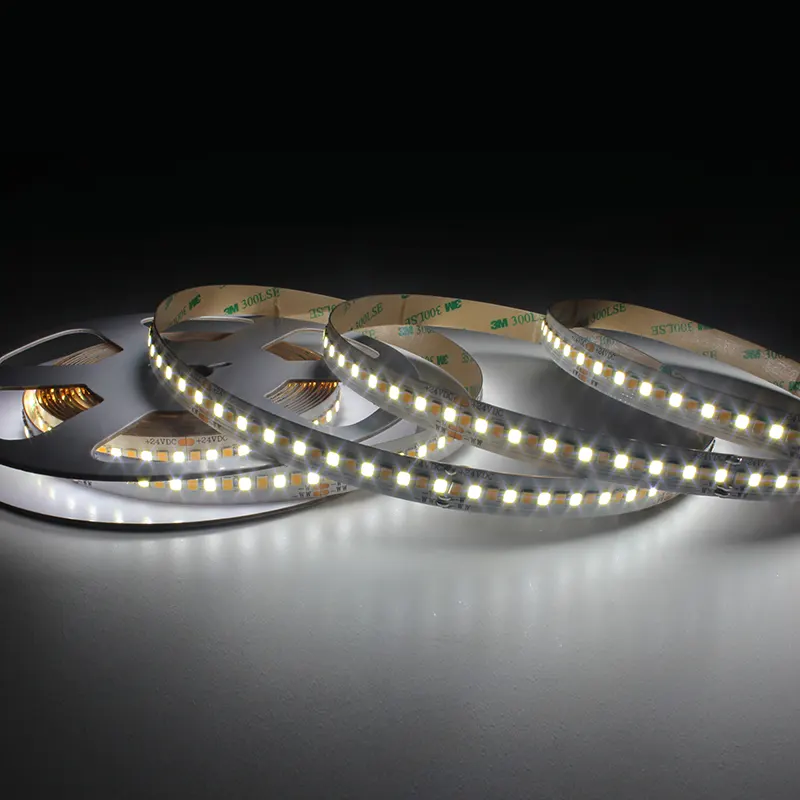

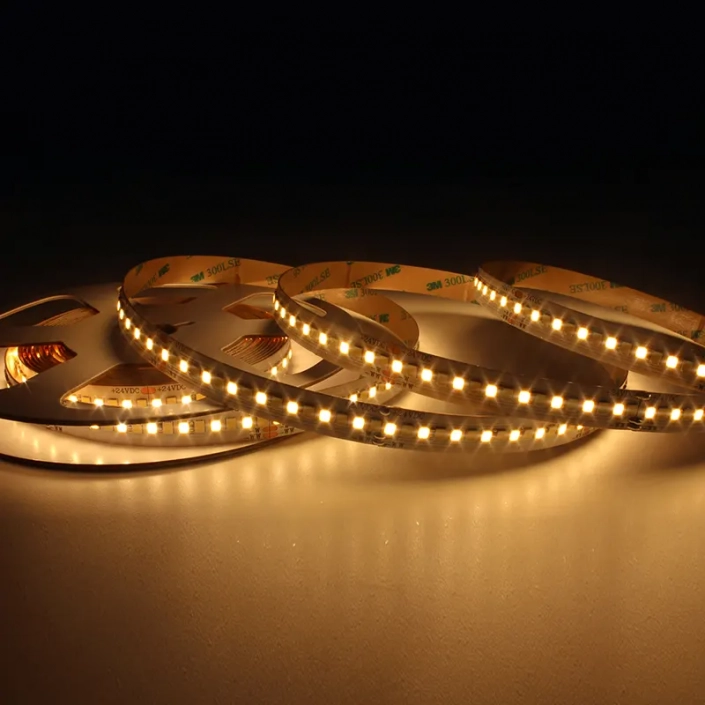

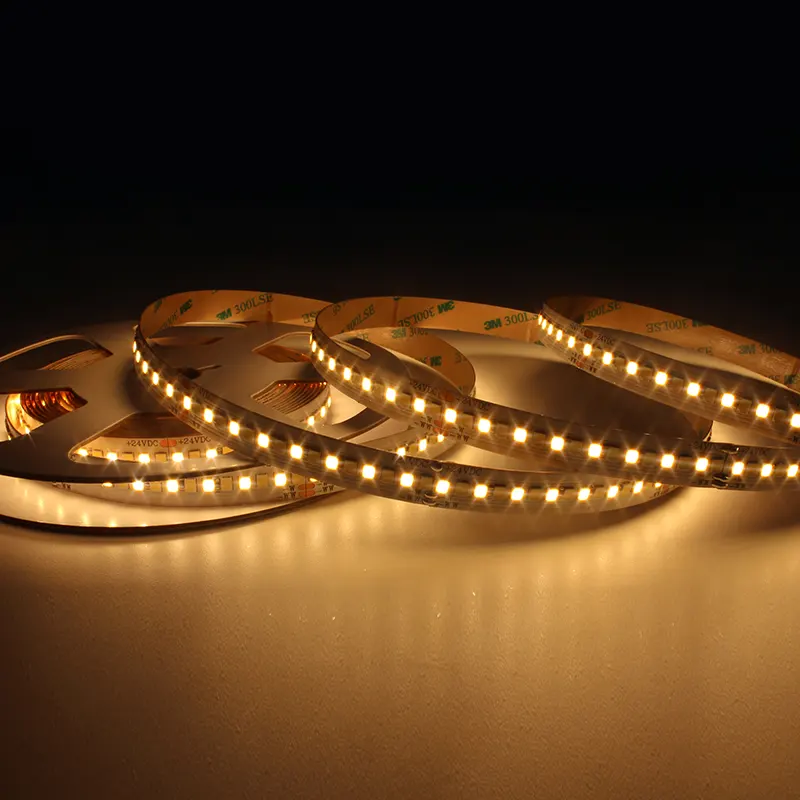

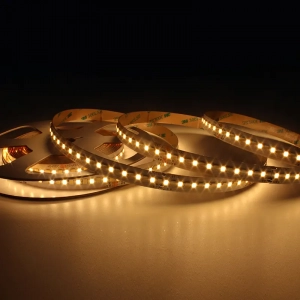

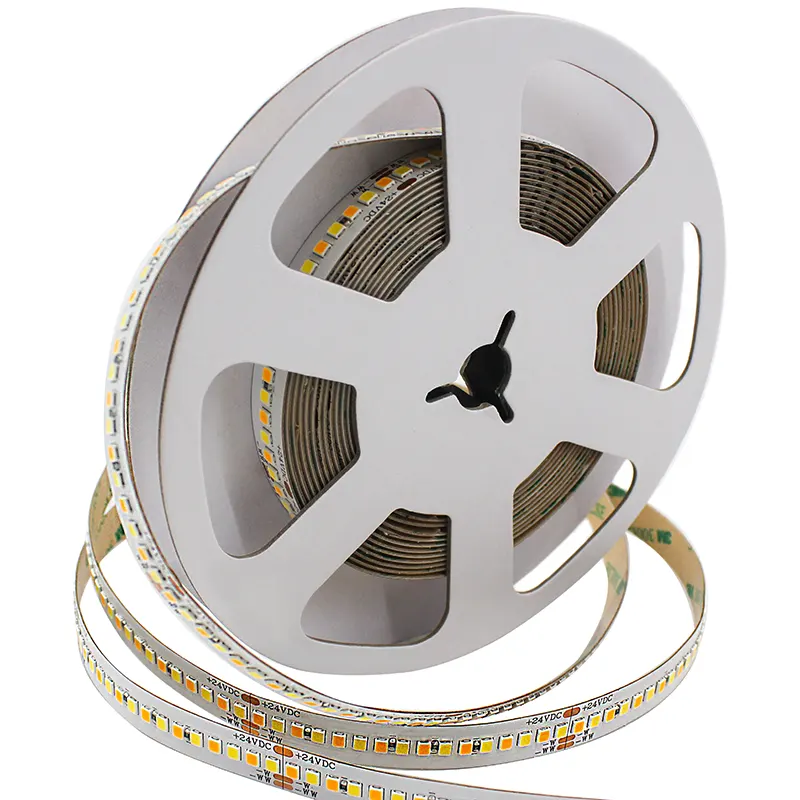

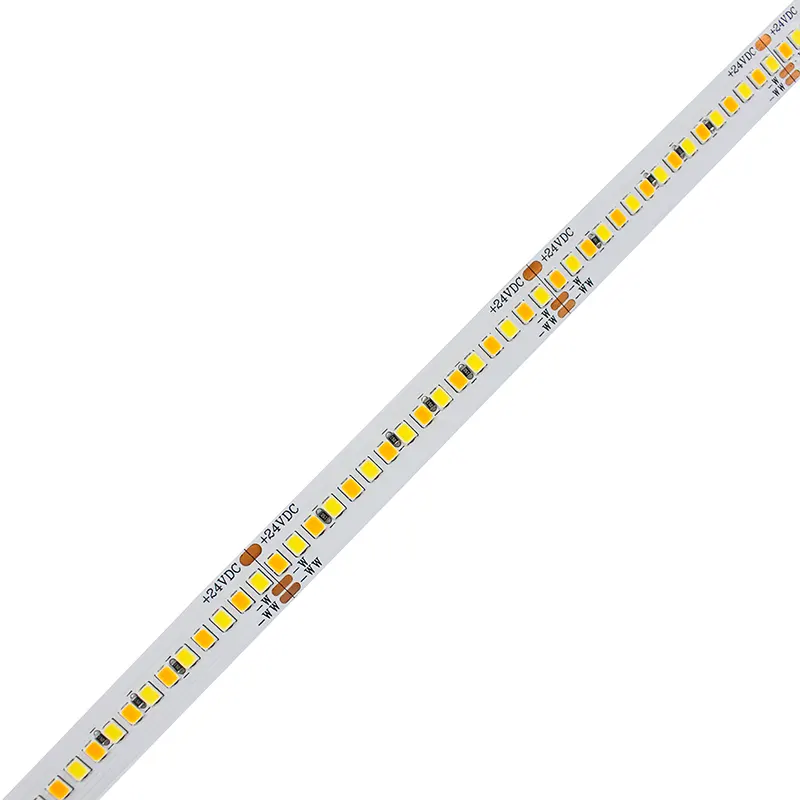

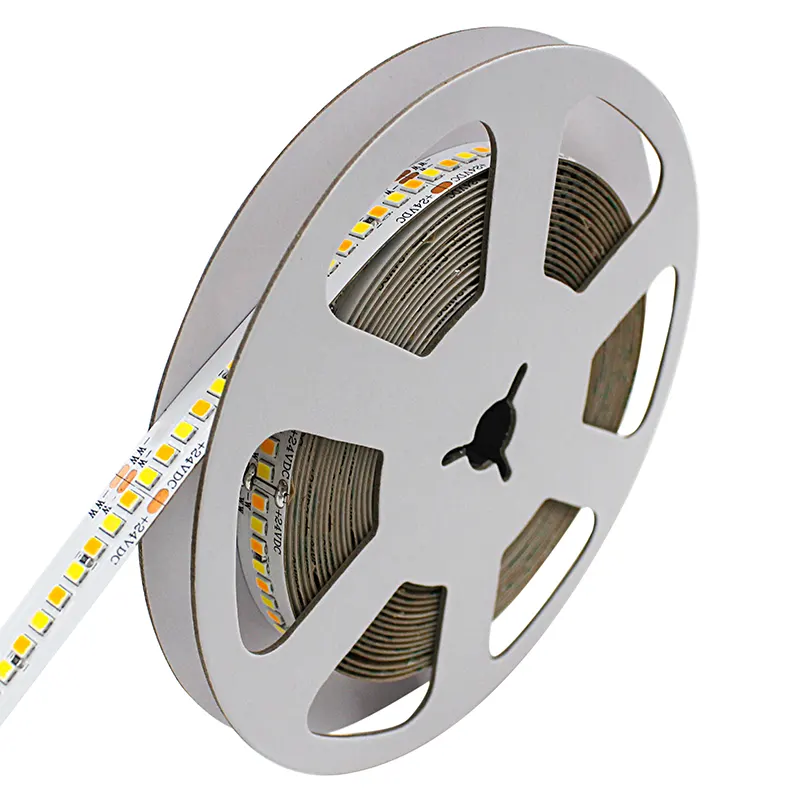

SMD2835 224LED/M 듀얼 화이트 플렉시블 LED 스트립

With white color changing function, you can also set this dual white flexible LED strip to warm white, natural white or daylight white. At just 1.6mm thick, these are ultra-thin and ultra-light, so they can be placed on any surface. These LED strips come with a 3M adhesive backing so you can attach the strips easily to any surface.

모델 번호.	UTFS-CA1224-2412
LED 수량:	224개/m
전압:	DC24V
와트:	21W/M
CCT:	2700K~6000K
CRI:	>90Ra

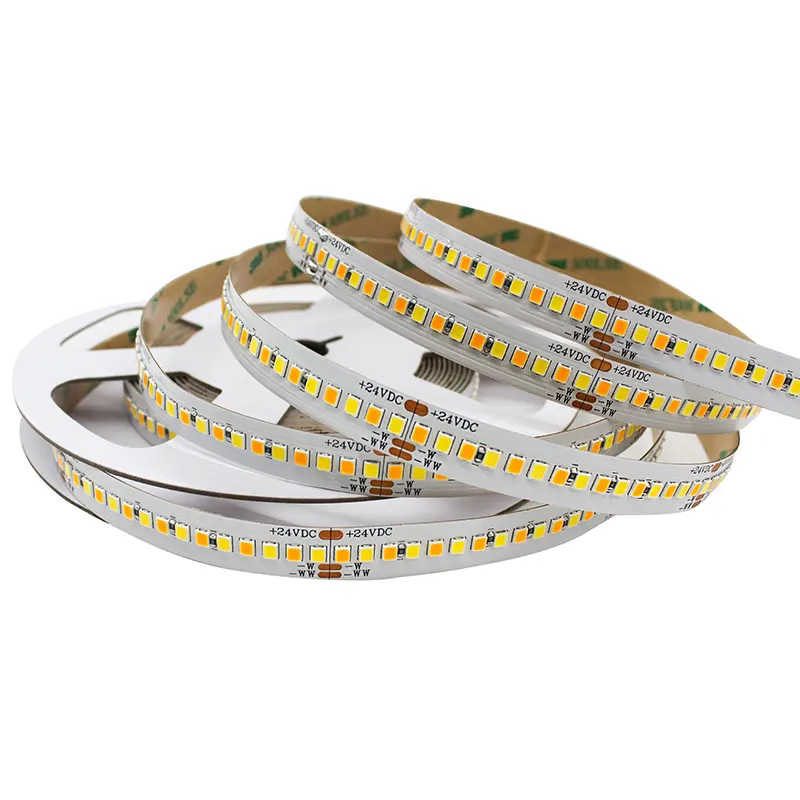

Dual White Flexible LED strip With SMD2835 224LEDs/M from Unitop

LED lights are everywhere these days, but they’re not always an easy installation. That’s where this dual white LED flexible strip comes in. We’ve taken care of the installation process for you! Our flexible LED strips are easy to install and you can use controller that makes it possible for you to change the light to different white colors you want. Since it is only operated by 24VDC, it is the safest way to light up your home

Unitop Dual White Flexible LED strips are with below CCT options:

Our Dual White Flexible LED tape comes with below IP rating options:

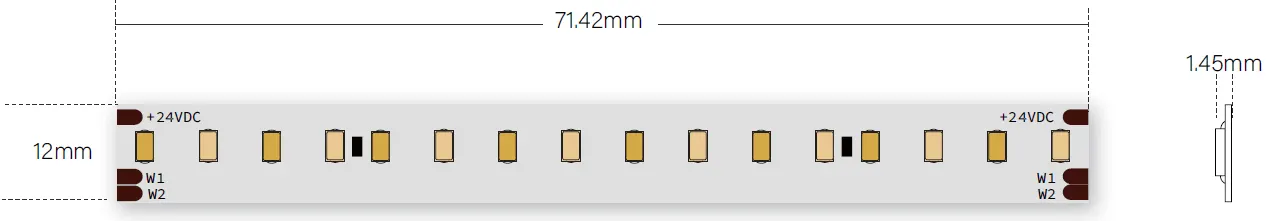

The cutting size of Unitop Dual White Flexible strip lighting:

Dual White Flexible LED strip cutting size

This Unitop Dual White Flexi LED strip is with below lumen:

CCT (°K) & Power
2700K 12W
4000K 21W
6000K 9W

효과
135lm/W
133lm/W
148lm/W

루멘/M
1620lm/m
2793lm/m
1332lm/m

How to install our Dual White Flexible LED strip lighting? You can find the wire diagram as below:

포장 정보를 알고 싶으신가요? 아래를 참조하세요:

아래 두 가지 주의 사항은 특히 주의가 필요합니다:

Please also pay attention to below issues while installing our Dual White Flexible LED ribbon:

1. Before installation, please cut off the power.
2. It is imperative that you don’t bend the flexi LED strip more than 45 degrees or it could cause damage to the LEDs and reduce its lifespan.
3. Cut the flexible strips in accordance with the cutting marks. If need be, use cutters or scissors.
4. Turning on the light after installing the new LED flexible strip is the best way to tell if there are any problems or if it works properly. If all LEDs are working, then you’re good to go!
5. The LED ribbon should be powered by an adapter with a 24VDC output, so please check the specifications on your power supply before installation. If you intend to use a battery pack or solar panel, please make sure that it matches the voltage and current required.

Dual White Flexible LED strip With SMD2835 224LEDs/M have a variety of applications. Here are some examples:

LED flexible ribbon can be used in many different ways.

They can be used to light up the inside of cabinets, drawers, and closets.

Fluorescent lights are not as energy-efficient as LED lights, so LED lights are used in many office buildings, hospitals, and warehouses to save on energy costs.

Flexible LED strips are a great way to add a decorative touch in your home. They can be installed in a variety of places such as under cabinets, in closets, or even on the ceiling. You can also use them for holiday decorating or to create ambiance in the living room.

LED flexible strip lightings provide a great way to illuminate the interior of your home or office. You can choose from a variety of color options, and as the LEDs are flexible, they can be used to decorate anything from walls and ceilings to handrails and handbags.

아래에서 애플리케이션의 몇 가지 예를 확인할 수 있습니다:

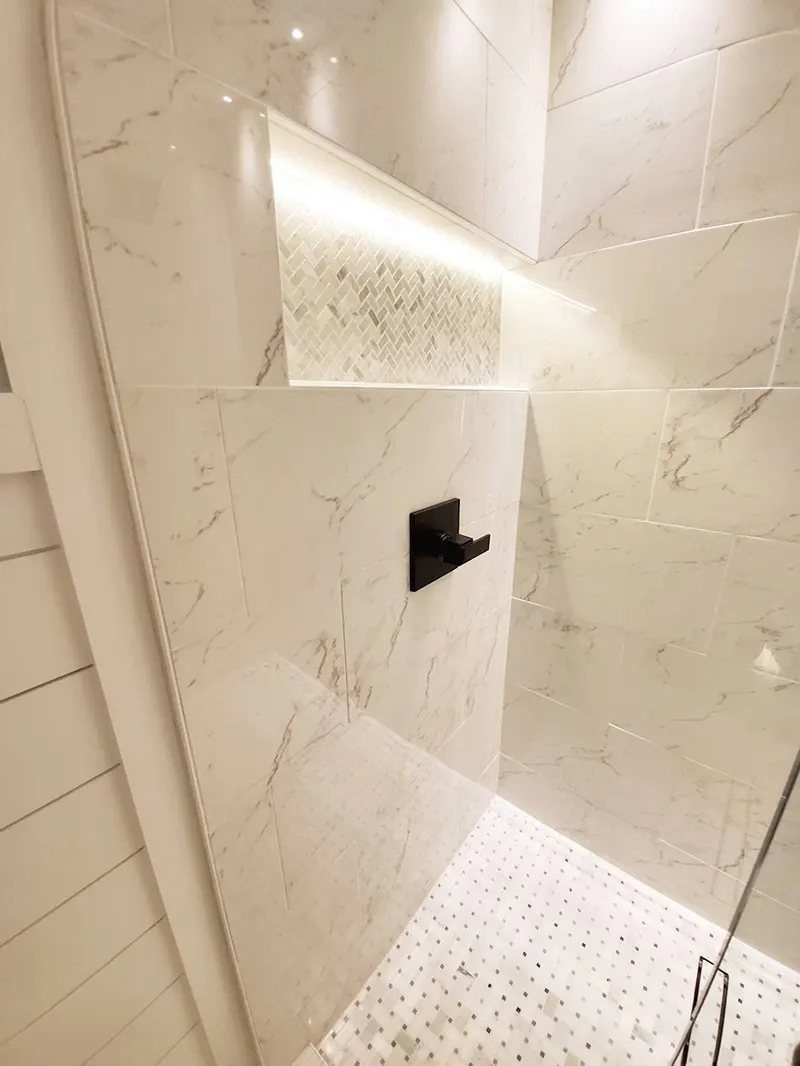

욕실 조명

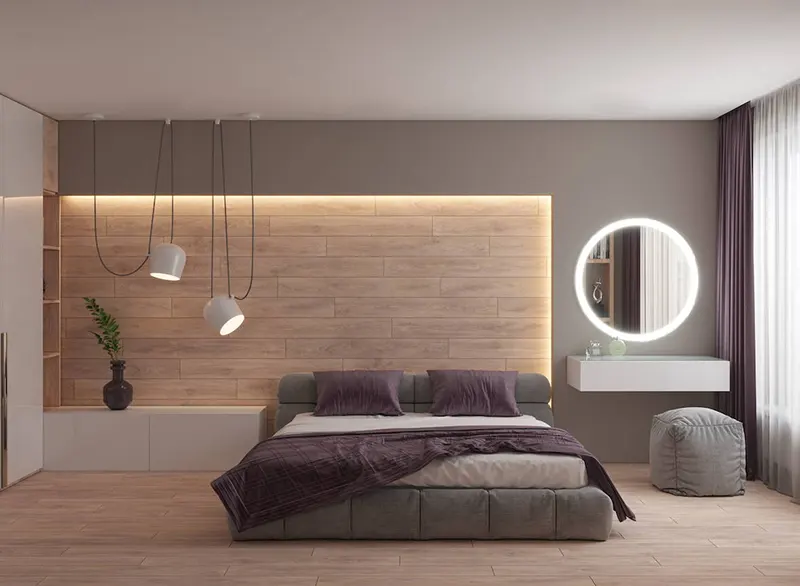

침실 조명

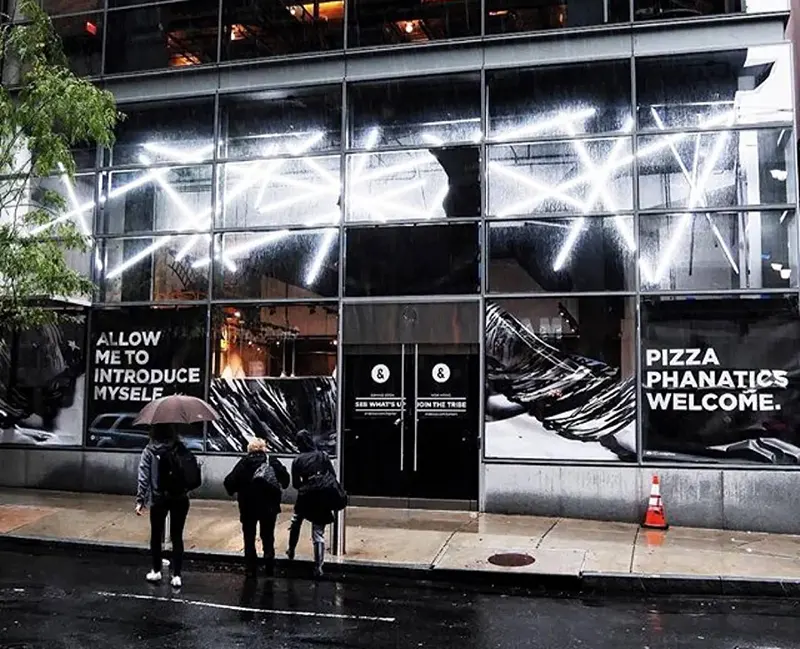

상업용 조명

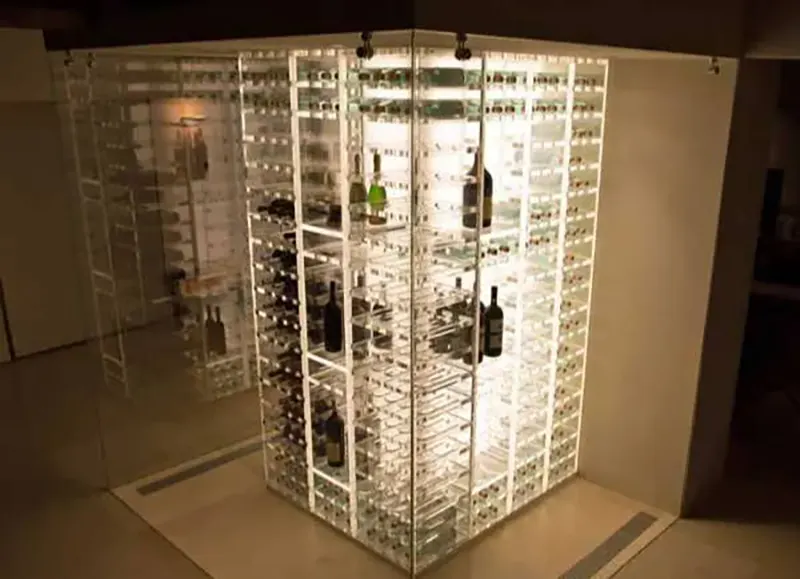

레스토랑 조명

FAQ of Unitop Tunable white LED flex:

What voltage can I use to power LED strip?

LED strip is powered by DC voltage. Usually, 12V or 24V can be used. The present LED strip is 24VDC.

What color temperature does this LED flex has?

The color temperature is 2700K, 4000K and 6000K. It is three colors tunable.

What are the benefits of a LED flexible strip?

The benefits of a LED flexible strip are that it is low power, low heat, and is relatively easy to install.

SMD2835 224LED/M 듀얼 화이트 플렉시블 LED 스트립

Dual White Flexible LED strip With SMD2835 224LEDs/M from Unitop

Unitop Dual White Flexible LED strips are with below CCT options:

Our Dual White Flexible LED tape comes with below IP rating options:

The cutting size of Unitop Dual White Flexible strip lighting:

This Unitop Dual White Flexi LED strip is with below lumen:

How to install our Dual White Flexible LED strip lighting? You can find the wire diagram as below:

포장 정보를 알고 싶으신가요? 아래를 참조하세요:

아래 두 가지 주의 사항은 특히 주의가 필요합니다:

Please also pay attention to below issues while installing our Dual White Flexible LED ribbon:

Dual White Flexible LED strip With SMD2835 224LEDs/M have a variety of applications. Here are some examples:

아래에서 애플리케이션의 몇 가지 예를 확인할 수 있습니다:

FAQ of Unitop Tunable white LED flex:

What voltage can I use to power LED strip?

What color temperature does this LED flex has?

What are the benefits of a LED flexible strip?
