In our ever-evolving world, it’s near impossible not to spot an LED light fixture illuminating our surroundings. Renowned for their impeccable energy-saving capabilities, LEDs undoubtedly reign supreme in energy efficiency. Yet, when it comes to the warm glow and intricate dimming nuances that traditional incandescent bulbs offer, LEDs are still striving to catch up.
Transitioning smoothly into this LED-dominated era, dimmers equipped with thyristor integrated circuits, better known as TRIACs, are stepping up. These powerhouses are swiftly replacing the previously reigning champions: compact fluorescent bulbs, halogens, and in places where incandescence still whispers its legacy. Why is TRIAC emerging as the go-to choice? Well, for LED lighting to carve its niche, it should sip energy and display enduring resilience. TRIAC, despite being crafted from inexpensive components, masters the art of controlling high-powered devices, making it an apt choice for our larger-than-life lighting aspirations and other significant electrical endeavors.
Allow me to illuminate further. I’m Tom, and my journey in the LED lighting industry began in 2005. With every flicker and glow, I delved deeper, unearthing the myriad facets of LED Triac dimming. My extensive experience has granted me a panoramic view of its evolution, nuances, challenges, and successes. The list and insights shared in this guide are not mere amalgamations of widely available information. Instead, they have meticulously curated reflections of almost two decades of hands-on experience, rigorous research, trials, and a deep-seated passion for all things LED.
Curious to explore the vibrant world of LED Triac dimming? Interested in discerning the intricate interplay of components that make your LED lights dance to your desired brightness? Well, you’re in the right place. Grab a comfy seat, perhaps a cup of your favorite beverage, and let’s dive right into this enlightening journey!
Introduction to LED Triac Dimming
What is Triac Dimming?
Triac dimming is a revered and time-tested technique used extensively to modulate lighting fixtures’ brightness, with LEDs being the most prominent beneficiary in recent times. At the heart of this system lies the “Triac” – a semiconductor device whose role can be best equated to a gatekeeper. It diligently regulates the quantity of electricity coursing through to the light, facilitating a seamless dimming effect. In essence, by leveraging the Triac’s capabilities, users gain exceptional control over their lighting environment, setting the ambiance to their precise preferences.
How does Triac Dimming Works with LEDs?
Delving into the technicalities, Triac dimming operates by manipulating the AC (Alternating Current) waveform. Instead of allowing a continuous power flow, this method artfully truncates specific portions of the waveform. This action, colloquially referred to as “chopping,” directly diminishes the average power coursed to the light source. As the Triac dimming system truncates or “chops” varying extents of the AC power waveform, the LED’s brightness is affected proportionately. The more significant the “chop,” the lesser power the LED receives, culminating in a reduced brightness. This intricate dance of waveform manipulation ensures LEDs can be fine-tuned to exude the desired luminosity, granting users an unparalleled lighting experience.
The Advantages of LED Triac Dimming
When exploring the world of LED lighting, the Triac Dimming methodology emerges as a beacon of efficiency and simplicity. Here’s why:
Cost Efficiency: One of the standout advantages of LED Triac Dimming is its cost-effectiveness. It doesn’t require a hefty investment but delivers optimal performance, providing a significant return on investment.
High Voltage Support: Triac Dimmers are renowned for handling high voltages effortlessly. This robustness ensures that the LED lights function seamlessly, even in environments with voltage fluctuations.
Simplicity in Installation: Say goodbye to complex setup procedures! Installing a Triac Dimmer is straightforward, making it an attractive option for both professionals and DIY enthusiasts.
Unwavering Reliability: Its analog nature is a testament to its durability and reliability. Unlike digital systems that may falter due to software glitches, Triac Dimmers stand the test of time, offering consistent performance throughout their lifespan.
Deep Dive: Understanding the TRIAC Mechanism
What Exactly is A Triac?
The world of electronics brims with components, but few are as pivotal as the Triac. An acronym for “Triode for Alternating Current,” a Triac is the gatekeeper of electric current. Envision it as a bidirectional switch: when triggered, it’s akin to opening floodgates, allowing current to flow freely. Conversely, when it’s dormant or untriggered, it acts as a formidable barrier, halting the passage of current. Its bidirectional nature means it can handle current in both directions, making it a versatile component in various applications, not just dimming.
Working Mechanism of TRIAC Dimmer
A Triac Dimmer is akin to a maestro conducting an orchestra, modulating the flow of electricity with precision. The heart of its operation lies in manipulating the phase angle of the AC (Alternating Current) supply waveform. Consider this as deciding the precise moment to ‘cue in’ the electric current during each AC cycle. Pinpointing when the triac should be triggered effectively governs the amount of electricity that reaches the light. This nuanced control allows for meticulous adjustments in brightness levels.
Leading Edge vs. Trailing Edge Dimming
Two terms frequently pop up in the dimming landscape: Leading-edge and Trailing-edge dimming.
Leading-Edge Dimmers: These are the veterans of the dimming world, having been predominantly paired with incandescent lamps. Their modus operandi involves truncating the initial phase of each AC cycle. While effective, this “front-end” chopping method may not always be ideal for newer light technologies.
Trailing-Edge Dimmers: Enter the modern counterpart. Tailored for the newer generation of lights, mainly LEDs, these dimmers operate by slicing off the latter portion of the AC cycle. This “back-end” technique ensures a smoother, flicker-free dimming experience, making them the preferred choice for LED applications.
Both styles have unique merits, but with the advent of LED lighting, trailing-edge dimmers are increasingly becoming the go-to option for many.
Triac Dimming vs. Other Dimming Methods
Comparing Triac Dimming to PWM Dimming
Lighting technologies have evolved significantly, with TRIAC and PWM (Pulse Width Modulation) emerging as two predominant dimming methods. But how do they stack up against each other?
TRIAC Dimming: Fundamentally, TRIAC dimming operates on the principle of phase control. By manipulating the alternating current (AC) waveform, TRIAC dimmers regulate the amount of power reaching the LED, thus adjusting its brightness. It’s a tried-and-true technique, primarily preferred for its analog-based mechanism.
PWM-dimmen: This method takes a decidedly different route. PWM achieves dimming by rapidly toggling the LED on and off, creating an illusion of dimmed light to the human eye. The brightness is determined by the proportion of time the LED stays on during each cycle, known as the duty cycle.
While both methodologies aim to achieve the same end goal – adjusting brightness – their fundamental operations are poles apart. TRIAC’s approach revolves around electrical waveform modulation, whereas PWM employs a frequency-based strategy.
Triac Dimming vs. 0-10V Dimming
Stepping into the arena of analog dimming, we find two heavyweights: Triac and 0-10V.
0-10V Dimming: This method is a nod to its very name, where the LED brightness is controlled by varying the voltage in the 0 to 10V range. A lower voltage corresponds to dimmer light and vice-versa. The communication channel here is direct: the desired brightness level is conveyed to the LED driver, ensuring a seamless dimming experience.
Contrast this with Triac Dimming, where the play is about shaping the AC waveform to adjust the power supply. The methods are distinct, but each has its place, depending on the application and desired outcome.
Dali Dimming vs. Triac
When digital meets analog, the conversation gets intriguing. Let’s delve into the dynamics of DALI vs. Triac.
DALI (Digital Addressable Lighting Interface): This is a foray into the digital realm. Unlike traditional analog methods, DALI communicates directly with individual lighting fixtures. This allows for granular control over each light source, making it ideal for intricate lighting setups. Apart from brightness control, DALI also offers functionalities like color adjustments, making it versatile and feature-rich.
In contrast, Triac is rooted in the analog domain, operating via phase-cutting methods. While it might not have the granular controls of DALI, it offers straightforward, reliable dimming for a wide array of lighting scenarios.
Pros and Cons of Various Dimming Techniques
The dimming world is vast and varied, each technique boasting its strengths and nuances.
Triac Dimming:
Pros: Affordability and compatibility with high-voltage setups.
Cons: Potential inefficiencies in energy consumption, especially when not optimized.
PWM Dimming:
Pros: Offers granular brightness control, ensuring smooth transitions.
Cons: Restricted to Direct Current (DC) inputs, which can limit its application in specific setups.
0-10V Dimming:
Pros: Direct communication with the LED driver ensures accurate brightness representation.
Cons: Like PWM, it’s constrained by the need for a DC power supply-compatible LED setup.
DALI Dimming:
Pros: Individual fixture control, extended features like color adjustments.
Cons: Typically more expensive and might be overkill for simpler lighting needs.
Choosing the proper dimming technique is crucial, depending on the specific requirements and desired outcomes. From residential setups to expansive commercial spaces, understanding the nuances of each method ensures optimal lighting ambiance and energy efficiency.
Components and Technical Aspects of LED Triac Dimming
Essential Components: LED Drivers and Their Role
In the realm of LED illumination, the LED driver stands tall as the silent guardian. It is indispensable in transforming the input power into a steady current source, tailor-made for LED requirements. Much like the heart pumps blood uniformly throughout our body, the LED driver ensures consistent energy to the LED.
Within the sphere of TRIAC dimming, the LED driver gains an added layer of significance. The synchrony between the TRIAC dimmer and the LED driver is imperative. Just as a dance duo must be in sync to create a mesmerizing performance, the TRIAC dimmer and the LED driver must harmoniously collaborate for optimal, flicker-free lighting.
Triac-Compatible LEDs and Their Importance
One size doesn’t fit all in the LED universe, especially when integrating with TRIAC systems. While LEDs have revolutionized lighting with their efficiency, not all are built to cooperate with TRIAC dimmers.
Picking TRIAC-compatible LEDs is not just a preference; it’s a necessity. This compatibility is the linchpin that safeguards against common hiccups like flickering or complete non-operation. The bridge ensures a seamless dialogue between the LED and the TRIAC dimmer, enabling a nuanced dimming dance.
Understanding LED Load and Its Dimming Impact
Think of the LED load as the collective energy appetite of all LEDs in a setup. This cumulative wattage is more than just a number; it’s the pulse of your lighting system. A TRIAC dimmer must be astutely chosen to match this appetite.
A misjudged load can lead to a spectrum of issues. If the load leans towards the lighter side, the consequence could manifest as erratic flickering, disturbing the ambiance. Conversely, an excessive load is like overfeeding, potentially overburdening the dimmer and risking its longevity.
What is a Dimming Curve? And its Types
Imagine driving on a road. The drive’s nature— smooth, steep, or winding—is dictated by the road’s contour. Similarly, a dimming curve determines the journey from dim to bright in the lighting world.
There are several roadmaps (or curves) for this voyage:
Linear Curve: The most straightforward path, where dimmer input increases correspond linearly to the rise in light output. Think of it as a straight highway.
Logarithmic Curve: A more nuanced curve, often mimicking the human eye’s brightness perception. The changes in the initial stages are more pronounced, gradually mellowing out. It’s like a hilly drive.
S-Curve: A balance between the two, this curve ensures a smooth start, a linear middle, and a gentle climax, much like a scenic countryside drive with varied terrains.
The choice of the curve is pivotal in ensuring the desired ambiance and user comfort.

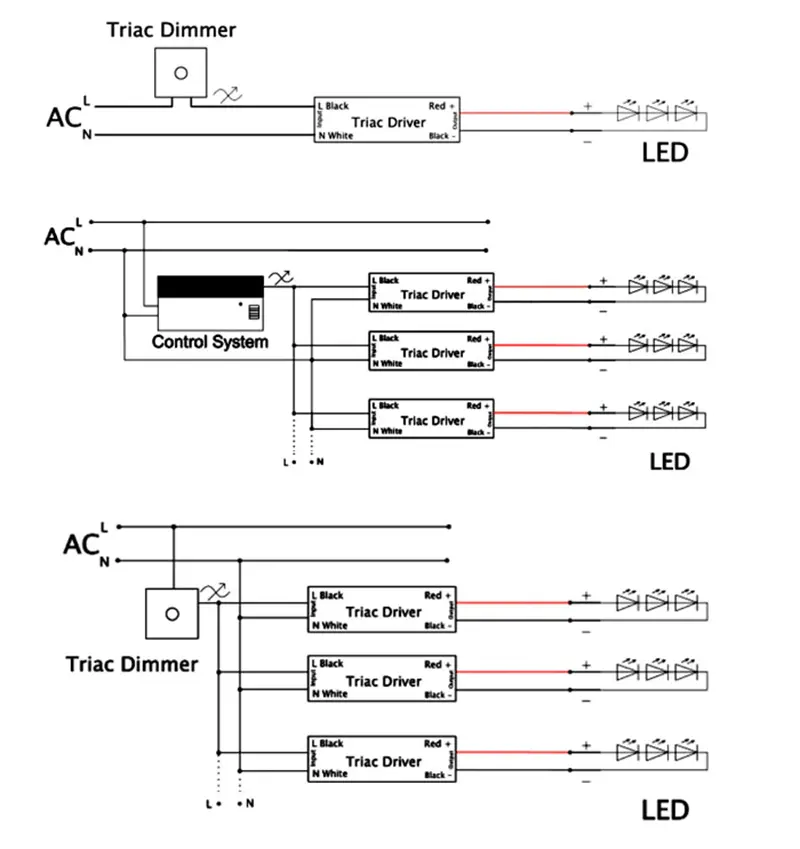

Triac Dimming Wiring Techniques
The beauty of Triac dimming lies not just in its performance but also in its adaptability. For those dreading a wiring overhaul, here’s the good news: TRIAC dimming effortlessly dovetails into pre-existing systems.
The transition is simple. The traditional wall switch gracefully bows out, making way for the TRIAC dimmer. This switch ensures that the power to orchestrate brightness levels lies directly in the hands of the user, providing an interactive and customizable lighting experience.
Triac Dimming Controllers, Receivers, and Systems
Role of a Triac Controller
Much like a master conductor guiding an orchestra to bring harmony to various instruments, the TRIAC controller masterfully dictates the symphony of light intensity. Positioned at the core of the TRIAC dimming mechanism, this controller is the cerebral component that precisely decides when and how to tailor the AC waveform. The objective? To sculpt the ambiance and deliver the exact luminosity level that the user desires. Every nuanced alteration, every subtle dip or peak in brightness, is orchestrated by this marvel, making it an integral part of the TRIAC dimming system.
What is a TRIAC Receiver?
While the TRIAC controller is the brain, the TRIAC receiver is akin to the ears, keenly listening to the commands issued by the TRIAC dimmer. Often nestled within the confines of the LED driver, this component serves as a bridge, translating the dimmer’s directives into a language the LED comprehends. Once it deciphers the commands, the receiver adjusts the LED’s power, achieving the desired luminance level. The silent interpreter provides the dialogue between the dimmer, and the LED is fluid, making the magic of customized lighting possible.
Triac LED Control System: Overview and Wiring
Stepping back to admire the bigger picture, the Triac LED control system is a meticulously designed ensemble of components. Each part – the TRIAC dimmer, LED driver, and LED lights – plays a pivotal role, together crafting the mosaic of optimal lighting.
When setting up this intricate tapestry, the wiring process takes center stage. The journey begins by intertwining the TRIAC dimmer with the main supply. This ensures that the controller gets its necessary feed of electricity. Next, a connection is forged between the dimmer and the LED driver, laying the foundation for seamless brightness control. With these connections established, the stage is set for users to craft their perfect ambiance, adjusting brightness with unparalleled precision.
Benefits and Limitations of Using Triac Dimmers
Advantages of TRIAC Dimmers in LEDs
TRIAC dimmers have firmly etched their mark in dynamic lighting solutions for good reasons. Pioneering the LED lighting revolution, these dimmers have been celebrated for their straightforward and no-frills design. Boasting unparalleled compatibility with high-voltage setups, they eliminate the need for specialized equipment, thus simplifying the installation process. They hit the sweet spot from a cost perspective, offering a budget-friendly solution that doesn’t compromise performance. Furthermore, in an age where cyber threats loom large, the analog nature of TRIAC dimmers emerges as a breath of fresh air, devoid of software glitches and immune to hacking threats.
Common Drawbacks and Limitations
But like all silver linings, there are clouds attached. Compared to their digital counterparts, TRIAC dimmers often find themselves confined to a more restricted dimming range. And while they’re champions in compatibility, they sometimes lag in the efficiency race. The mechanism that allows them to regulate light intensity might inadvertently waste power, a drawback that needs to be fixed by the conservation-conscious.
Energy Efficiency and Sustainability Considerations
Drilling deeper into the sustainability facet, TRIAC dimmers, despite their numerous accolades, do come with an asterisk. While they might be compatible with many setups, there’s a hidden cost. Only some of the power they draw is channelized effectively. Some of it dissipates without purpose, which might ruffle the feathers of those who prioritize green living and sustainable choices.
Smart and Alternative Dimming Options
Alternative Smart Switches that are also TRIAC Dimmers
The evolution of lighting control has ushered in an era where intelligence meets tradition. Enter smart switches, the 21st-century successors to conventional switches, which seamlessly integrate the prowess of TRIAC dimming with the sophistication of modern smart features. These hybrid devices encapsulate the best of both worlds. They retain the robustness and reliability of traditional TRIAC systems while introducing the magic of automation and digital control into the mix.
How Do TRIAC Dimmers Compare with Smart Dimmers?
The dance between TRIAC dimmers and smart dimmers is a captivating one. TRIAC dimmers are purists at their core, focusing on their primary task—modulating light intensity. On the other hand, smart dimmers, the multitaskers, offer a broader spectrum of features. Imagine adjusting your room’s luminance from your smartphone while vacationing halfway across the world or scheduling your lights to mimic sunset hues during evening relaxation. These are the added layers of convenience and customization that smart dimmers bring to the table, marking a transformative shift in how we perceive and interact with lighting.
Industrial Grade Alternatives: DALI and DMX Dimming
Stepping into the professional arena of lighting control, DALI (Digital Addressable Lighting Interface) and DMX (Digital Multiplex) stand tall as industry-grade champions. These aren’t mere dimmers; they’re orchestrators of elaborate light shows. While dimming is a key feature, DALI, and DMX systems go many steps further. Tailored for sprawling and complex lighting architectures, these systems offer granular control at every node. They’ve got it all, whether it’s setting different lighting zones, introducing dynamic color changes, or programming intricate lighting sequences. Additionally, they equip users with monitoring capabilities, ensuring every light performs optimally and detecting anomalies quickly.
Troubleshooting and Best Practices
Common Issues: Flickering, Buzzing, and Solutions
Venturing into the lighting world, especially with advanced dimming solutions, might occasionally present challenges like flickering and buzzing. These are not just aesthetic concerns but can also indicate underlying technical issues. Often, the root of flickering lies in mismatched components—using a non-compatible LED with a specific dimmer or vice-versa. Overloading, where the sum wattage of connected LEDs exceeds the dimmer’s capacity, is another usual suspect. Additionally, compromised or improperly set up wiring can be the culprit. The key to resolution lies in meticulous troubleshooting: verifying component compatibility, assessing load levels, and double-checking the integrity of connections.
Improving Dimming Performance: Strategies and Techniques
The quest for impeccable dimming performance isn’t a distant dream but a tangible reality, provided one embraces the right strategies. A good starting point is calibration, ensuring that the dimmer and the LED driver are perfectly synchronized. Sometimes, the secret to smoother transitions and a broader dimming range is a mere adjustment to the dimming curve. Such tweaks can redefine the relationship between the dimmer’s input and the LED’s output, paving the way for a more refined lighting experience.
Optimizing Performance and Extending LED Lifespan
LEDs, while incredibly durable, thrive best under specific conditions. To squeeze out every ounce of performance and longevity from them, a few best practices come in handy. First and foremost, ensure proper heat management. LEDs detest heat; it shortens their life and dulls their brightness. By facilitating efficient heat dissipation, you can significantly improve their longevity. Over-dimming, frequently pushing the LEDs to their lowest brightness levels, can also stress them. Let’s occasionally let them operate at mid-range brightness. Lastly, like all devices, regular check-ups and maintenance can spot issues early on, ensuring your LEDs shine bright for years.
Upgrading and Retrofitting with Triac Dimmers
In today’s rapidly evolving tech landscape, many homeowners and businesses seek efficient ways to integrate modern lighting solutions without a complete overhaul. Triac dimmers present an enticing solution, but understanding the nuances of integration can make all the difference. Let’s delve into the intricate process of upgrading and retrofitting with Triac dimmers.
Converting Non-Dimmable LEDs to Triac Dimmable
So, you’ve got non-dimmable LEDs but yearn for the ambiance and flexibility that dimmable lighting provides? The transformation is simpler than you might imagine. At the heart of this conversion lies the LED driver. The existing driver, which isn’t designed to handle dimming functions, must be replaced with one that’s TRIAC-compatible. Doing so establishes a bridge of communication between the LED and the TRIAC dimmer, unlocking the world of adjustable brightness. This step augments the functional aspect of your lights and adds a touch of sophistication to your lighting ambiance.
Retrofitting Traditional Lighting with Triac Dimmable LEDs
For those still clinging to the warm glow of traditional incandescent bulbs, the allure of LED’s energy efficiency and longevity is hard to resist. The transition to TRIAC dimmable LEDs is a transformative experience. It’s not just about replacing the bulb; sometimes, it extends to the dimming mechanism. Older dimmers, designed in the pre-LED era, might only sometimes be compatible with the nuances of LED dimming. To ensure a flicker-free and smooth dimming experience, bid farewell to those antique dimmers and welcome modern TRIAC dimmers tailored for LEDs.
Considerations When Upgrading
Embarking on the upgrading journey is exciting, but it demands thoughtful deliberation. First and foremost, there’s the financial aspect. While the long-term savings with LEDs are significant, there’s an upfront cost to consider, especially when dealing with extensive installations.
Next, there’s the technical side of things. The existing wiring in older homes or establishments might sometimes be in sync with the requirements of modern TRIAC dimmers. Ensuring compatibility is paramount to prevent potential electrical issues. Also, always be mindful of the total load. Combining several LEDs on a single dimmer can inadvertently overload it if not chosen correctly.
Lastly, it’s wise to forecast the potential energy savings. The initial investment in TRIAC dimmable LEDs pays dividends in the long run, not just in reduced electricity bills but also in the reduced environmental footprint. Thus, when contemplating the switch, look beyond the immediate and envision a brighter, more sustainable future.
Installation, Safety, and Maintenance of Triac Dimming Systems
Incorporating a Triac dimming system into your space can revolutionize your lighting experience. However, ensuring proper installation, adherence to safety protocols, and timely maintenance is pivotal. Here’s a comprehensive guide to help you through each phase, ensuring longevity and optimal performance.
Stap-voor-stap installatiegids
Installing a TRIAC dimmer might seem intimidating to the uninitiated, but with systematic steps and caution, it can be accomplished with relative ease. Here’s a straightforward, step-by-step breakdown:
Power Down: Before you begin, ensure the main power supply to the room or circuit you’re working on is switched off. This is a primary safety measure to protect against electrical shocks.
Removal of Existing Fixture: Carefully remove the old wall switch or dimmer, depending on your existing setup. This might require unscrewing it from the wall and disconnecting the wires.
Wire It Right: Lay out the TRIAC dimmer and its accompanying wires. With the instruction manual in hand, meticulously connect each wire from the dimmer to the respective wire in the wall. Typically, color coding or labels guide this process but always double-check to ensure correctness.
Seal the Deal: Gently tuck the wires into the wall box once all the cables are secured. Fasten the TRIAC dimmer into its position, ensuring it sits flush with the wall.
Power Up and Test: With everything in place, restore the power supply. Test the dimmer’s functionality, adjusting the brightness levels to ensure smooth operation.
Safety Measures, Wiring, and Configuration
Safety should never be compromised. When dealing with electrical installations:
Local Electrical Codes: Familiarize yourself with and strictly adhere to local electrical codes and regulations. These are designed to prevent hazards and ensure safe installations.
Use of Multimeter: Before you touch any wire, use a multimeter to verify there’s no residual power. This simple step can be a lifesaver.
Professional Assistance: If the wiring appears complex or you need clarification on any step, it’s always wise to consult or hire a professional electrician. Their expertise can prevent potential mishaps and ensure a flawless installation.
Maintaining Triac Dimming Systems for Optimal Performance
For the TRIAC dimming system to offer unwavering performance over the years, a little upkeep goes a long way:
Routine Inspection: Periodically inspect the system for any signs of wear and tear, loose wires, or malfunctioning components.
Cleanliness is Key: Dust and debris can hinder performance. Ensure the dimmer, switch, and surrounding area are clean and free from dust accumulation.
Calibration: Over time, the dimming range or response might drift. Calibrate the system as needed to maintain the desired dimming levels and response.
Incorporating these best practices ensures that your TRIAC dimming system remains a reliable and efficient part of your space, offering ambient lighting solutions tailored to your needs.
Compliance, Standards, and the Horizon of TRIAC Dimming
The world of TRIAC dimming is ever-evolving, with a vast landscape governed by strict standards and continuously illuminated by innovative sparks. We’ll paint a detailed portrait of this dynamic domain by delving into the regulatory fabric, future predictions, and the integration horizon.
Industry Standards and Regulatory Requirements
Adherence to standards is paramount for any electrical component, especially one directly interacting with the power supply. These benchmarks don’t just dictate quality; they also ensure safety, reliability, and consistent performance.
IEEE (Institute of Electrical and Electronics Engineers): As one of the world’s most influential electrical and electronics standards-setting bodies, IEEE provides a regulatory framework. These standards encompass aspects like design, safety protocols, and performance metrics to ensure that TRIAC dimmers don’t just function efficiently but also safely.
IEC (International Electrotechnical Commission): As a global standards organization, IEC is pivotal in setting international standards for all electrical, electronic, and related technologies, including lighting control systems like TRIAC dimmers. Their guidelines assure consumers that the product they’re investing in aligns with international best practices.
Future Trends and Predictions in Triac Dimming
The lighting industry, like many sectors, is undergoing rapid transformations thanks to technological advancements:
Energie-efficiëntie: As a global emphasis on sustainability grows, future TRIAC dimmers will undoubtedly tilt more toward energy conservation. This could manifest in more advanced circuitry, better integration with LED technology, or even systems that learn and adapt to user behaviors to save energy.
IoT and AI Integration: Imagine a TRIAC dimmer that regulates your room’s brightness and learns your preferences over time. Or one that syncs with weather apps, adjusting indoor lighting based on natural availability. With the growing prowess of IoT (Internet of Things) and AI (Artificial Intelligence), such adaptive, intuitive systems are well within the realm of possibility.
Integration with Home Automation Systems
Home automation is no longer the domain of science fiction. Today’s homes can be intelligent, with every device working in symphonic harmony:
Unified Control: As TRIAC dimmers become more sophisticated, we can expect seamless integration into broader smart home ecosystems. This would allow users to control their lights in conjunction with thermostats, security systems, and entertainment setups using a single interface.
Voice and Gesture Control: With the rise of virtual assistants like Alexa, Siri, and Google Assistant, future TRIAC dimmers might well respond to voice commands. Beyond voice, gesture-based controls could be another frontier where simple hand movements can adjust the lighting.
The TRIAC dimming realm, backed by rigorous standards and fueled by relentless innovation, is poised to transform our interaction with light. Whether you’re a homeowner, an electrician, or a tech specialist, the journey ahead promises to be luminous and electrifying.
Real-World Applications and Case Studies of TRIAC Dimming
From our cozy living rooms to the grand stages of world-class theaters, the influence of TRIAC dimmers can be seen far and wide. By exploring some tangible implementations and learning from actual case studies, we can truly understand this transformative technology’s practical impacts and nuances.
Successful Implementations and Use Cases
The Home Front: Residential settings are among the most common grounds for TRIAC dimmers. The romantic dinner you had with candle-like dimming or the relaxed movie night where the lights gradually faded – was likely facilitated by TRIAC dimmers. Homeowners treasure these devices for ease of use, allowing them to set the mood at the flick of a switch without any technological hassles.
Stage and Theater Magic: TRIAC dimmers have long held their ground in theaters. The seamless transition from a bright, sunny scene to a moody, rain-soaked climax? The TRIAC dimmer working behind the scenes ensures that jarring light changes don’t interrupt audience immersion. Theater professionals vouch for their durability and reliability, especially during long performances.
Retail and Showrooms: Ever noticed how specific product displays have just the right amount of light to make them stand out? Retail spaces often employ TRIAC dimmers to highlight particular products or sections. By controlling the brightness, they subtly guide the customer’s attention where it’s most needed.
Art Galleries and Museums: The delicate art of highlighting masterpieces without damaging them is challenging. TRIAC dimmers offer a solution, ensuring artworks are presented in the best light without exposing them to harmful intensity levels.
Lessons and Insights from Real-World Examples
Drawing from these vast and varied implementations, several vital insights emerge:
Robustness is Key: Be it the repetitive daily use in homes or the demanding requirements of a theater, TRIAC dimmers consistently prove their robustness. They can handle frequent adjustments without significant wear and tear, proving their worth in longevity.
Simplicity Sells: In an age where technology can sometimes be dauntingly intricate, the TRIAC dimmer’s simplicity is its most significant selling point. Whether for a homeowner who isn’t tech-savvy or a gallery curator needing precise lighting, the straightforwardness of TRIAC dimming systems is a breath of fresh air.
Cost-Efficiency Matters: The cost savings of choosing TRIAC dimmers over more complex systems can be significant, especially in larger setups like theaters or museums. They provide a reliable solution without breaking the bank.
The TRIAC dimmer’s journey through the real world is a testament to its adaptability, durability, and undeniable charm. While technological marvels continue to evolve, the TRIAC dimmer stands firm, proving that sometimes, simplicity truly is the ultimate sophistication.
Veelgestelde vragen (FAQ's)
What is a TRIAC LED driver?
A TRIAC LED driver is the mediator in the dimming process. Integrated within the lighting system, it interprets commands from the TRIAC dimmer and modulates the LED’s power to achieve the desired brightness level.
Hoe bedraad ik een TRIAC-driver?
Het bedraden van een TRIAC-driver gaat in een aantal stappen. Schakel eerst de hoofdstroom uit om de veiligheid te garanderen. Verwijder alle oude schakelaars of dimmers en sluit vervolgens de draden van de TRIAC-dimmer aan volgens de handleiding. Zodra alles is aangesloten, herstelt u de stroomvoorziening en test u of de installatie naar wens functioneert.
Is TRIAC-dimmen voorfase of tegenfase?
TRIAC-dimmen wordt meestal voorfase- of leading edge-dimmen genoemd. Het werkt door het begin van de AC-golfvorm af te snijden om de helderheid van de lichtbron aan te passen.
Wat betekent ELV-dimmen?
ELV staat voor "Elektronische Laagspanning". ELV-dimmen maakt gebruik van elektronische transformatoren om dimmogelijkheden te produceren, en het wordt vaak geassocieerd met omgekeerde fase of faseafsnijdingdimmen.
Wat betekent MLV-dimmen?
MLV staat voor "Magnetische Laagspanning". Dit type dimmen maakt gebruik van magnetische transformatoren en wordt vaak geassocieerd met voorwaartse fase of leading edge dimmen, net als TRIAC.
Is TRIAC lichtnet (230 V) dimbaar?
Ja, TRIAC-dimmen kan worden gebruikt met netspanning, zoals 230V. Het werkt door de fasehoek van de AC-netspanning aan te passen om de helderheid van het licht te regelen.
Is TRIAC-dimmen hetzelfde als 0-10v?
Nee, TRIAC-dimmen en 0-10V-dimmen zijn verschillende methoden. Terwijl TRIAC werkt door de fasehoek van de AC-golfvorm aan te passen, past 0-10V dimmen de helderheid aan met behulp van een gelijkstrooms spanningssignaal.
Kunt u de LED dimmen met spanning?
Ja, LED's kunnen worden gedimd via spanningsregeling, vooral met systemen zoals 0-10V dimmen. De LED driver of module moet echter compatibel zijn met de dimmethode.
Heeft een TRIAC-dimmer een nulleider nodig?
Niet altijd. Traditionele TRIAC-dimmers hebben vaak geen neutrale draad nodig, omdat ze ontworpen zijn voor gloeilampen. Met de opkomst van LED's en slimme dimmers hebben sommige moderne TRIAC-systemen echter wel een nulleider nodig om correct te functioneren.
Kan TRIAC werken met domoticasystemen zoals Lutron en KNX?
Absoluut! Het toekomstige traject van TRIAC-dimmers wijst in de richting van hun mogelijke integratie met geavanceerde domotica-ecosystemen. Dit betekent dat gebruikers hun TRIAC-dimbare lampen binnenkort naast andere smart home-apparaten zouden kunnen bedienen voor een meer uniforme ervaring.
De wereld van TRIAC-dimmen afsluiten
De navigatie door de diepten van TRIAC-verduistering is verhelderend geweest en heeft ons van de basisprincipes tot de invloed ervan op ons dagelijks leven gebracht. Laten we bij het afsluiten van deze verkenning samenvatten wat we hebben geleerd en kijken naar de horizon van deze duurzame technologie.
Belangrijkste conclusies en de weg vooruit
Historische pijler: TRIAC-dimmen is niet zomaar een technisch modewoord. Het is een technologie die al jaren meegaat en de verlichtingskunst verfijnt en definieert. Haar langdurige aanwezigheid toont haar betrouwbaarheid en relevantie.
Betrouwbaarheid ontmoet betaalbaarheid: In een tijdperk waarin kosteneffectiviteit net zo belangrijk is als prestaties, onderscheiden TRIAC-dimmers zich als een baken dat zowel betrouwbaarheid als betaalbaarheid biedt. Dit dynamische duo van eigenschappen maakt van deze dimmers de keuze bij uitstek voor diverse toepassingen.
Klaar voor de toekomst, maar toch geworteld: Terwijl het digitale tijdperk nieuwe technologieën blijft introduceren, blijft TRIAC-dimmen veerkrachtig. Er staat TRIAC-dimmers een wereld aan mogelijkheden te wachten als ze samensmelten met slimme systemen en hun functionaliteit verbeteren. Maar hoezeer ze ook evolueren, hun essentie zal ongetwijfeld gegrond blijven in het leveren van eenvoudige, effectieve verlichtingsoplossingen.
Het belang en de voordelen van Triac-dimmen benadrukken
Een testament voor de tijd: Het feit dat TRIAC-dimmen niet in de vergetelheid is geraakt, maar zich heeft aangepast en heeft gefloreerd, is een duidelijk bewijs van het belang ervan. In een snel veranderend technologisch landschap is het geen geringe prestatie om relevant te blijven, en TRIAC dimmen heeft precies dat gedaan.
Veelzijdigheid in toepassingen: De veelzijdigheid van TRIAC-dimmen is ongeëvenaard, van de zachte gloed in onze slaapkamers tot de dramatische verlichting in theaters. Het aanpassingsvermogen aan verschillende omgevingen en vereisten onderstreept de voordelen.
Efficiënte verlichting: In de kern draait TRIAC-dimmen om het optimaliseren van licht. Door gebruikers de mogelijkheid te bieden om de helderheid volgens hun behoeften te moduleren, wordt een efficiënt energieverbruik gegarandeerd, wat aansluit bij de wereldwijde roep om duurzame praktijken.
Kortom, terwijl de verlichtingswereld zich blijft ontwikkelen met innovaties en oplossingen, blijft het TRIAC-dimsysteem een hoeksteen. Zijn nalatenschap, voordelen en potentieel traject benadrukken dat, hoewel lampen misschien vervagen, de glans van TRIAC-dimmen onverminderd blijft.
Partner met de beste - Unitop LED Solutions
In de uitgebreide wereld van LED-verlichting is er één naam die er onmiskenbaar uitspringt. Unitop. Als een van China's meest gerenommeerde en professionele fabrikanten is Unitop gespecialiseerd in LED-strip verlichting en LED neon flexvoor ongeëvenaarde kwaliteit en prestaties. Hun uitgebreide expertise strekt zich uit tot het garanderen van compatibiliteit met TRIAC-dimsystemen en biedt klanten een naadloze integratie-ervaring. Als u op zoek bent naar eersteklas LED strip producten die probleemloos werken met TRIAC-dimming, zoek dan niet verder. Neem contact op met Unitop en laat hun experts u begeleiden naar de ideale verlichtingsoplossing op maat van uw behoeften.
Verwante artikelen
Tom is nu de Sales Manager van Unitop (China) Co.. Hij is in de LED Verlichting industrie sinds 2005. Hij is een expert in verkoop & marketing, en fabrieksmanagement. Hij houdt van bodybuilding, en hij is ook een gekke Apple-fan! Hij is een hardwerkende man en houdt ervan te leren en nieuwe dingen te proberen.
Email: tom@unitopledstrip.com WhatsApp: +86-18680307140
Laat een reactie achter
Wil je meedoen aan de discussie?Voel je vrij om bij te dragen!
