360° LED Neon Flex D25 IP65 24VDC

360° LED Neon Flex is a type of flexible, continuous light strip that emits light uniformly in all directions. It mimics traditional neon lighting but uses energy-efficient LEDs. Suitable for signage, decorative lighting, and architectural applications.

Modelnr:UTNF-360D25
Afmeting:Diameter 25mm
Spanning:DC24V
Wattage:5W or 10W or 16W /m
CCT:2100K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, Tunable White, Red, Green, Blue, Yellow, Pink, Orange, RGB, RGBW
CRI:≥90Ra
Hoek:360°
IP-tarief:IP65
GRATIS OFFERTE AANVRAGEN
KenmerkenSpecificatieAccessoiresToepassingFAQDownloads
UTNF-360D25 360° LED Neon Flex

Unitop 360° Silicone LED Neon Flex Rope Light D25 has so many unique features, including but not limited to below:

360° Emitting Uniformly:

Unlike traditional LED strips that emit light primarily in one direction, 360° LED Neon Flex emits light uniformly in all directions around its entire circumference. This means that it provides consistent and even illumination from all angles, leaving no dark spots or shadows.

360° LED Neon Flex emitting uniformly

Flexible and Malleable:

Our 360° LED Neon Flex, featuring a unique product structure, is engineered to be both rigid and flexible, offering exceptional malleability. This design allows for versatile application across various environments, accommodating complex shapes and surfaces while maintaining durability and aesthetic appeal.

360° LED Neon Flex structure

Hoge CRI meer dan 90Ra:

De CRI van de LED's die we gebruiken is allemaal meer dan 90Ra. Daarom noemen we onze LED Neon Flex ook wel: Hoge CRI LED Neon Flex. Over het algemeen worden CRI-waarden (kleurweergave-index) van 90 en hoger als uitstekend beschouwd, maar waarden onder 80 worden over het algemeen als niet goed beschouwd.

CRI-vergelijking

IP 65:

Our 360° LED Neon Flex is IP65 protected, UV resistant, solvents resistant, and saltwater resistant. Dot-free will bring the most excellent performance for indoor and outdoor applications.

360° LED Neon Flex IP65

Afmeting en lengte:

Opmerking: De lengte van "L" is de lengte van de Neon Flex, wat een geheel veelvoud is van de minimale snijlengte.

UTNF-360D25 dimension

Elektrische en Lumen gegevens:

Photoelectric parameters (5W)

Unitop Modelnr.KleurCCTCRIKijkhoekLumen
LM/M
Werkzaamheid LM/WWerkspanningVermogenIP tarief
UTNF-360D25-5WW
Warm wit2100K≥90Ra360°2565124VDC5W/MIP65
UTNF-360D25-5WW
Warm wit2400K≥90Ra360°27256
24VDC5W/MIP65
UTNF-360D25-5WW
Warm wit2700K≥90Ra360°2765524VDC5W/MIP65
UTNF-360D25-5WW
Warm wit3000K≥90Ra360°2845724VDC5W/MIP65
UTNF-360D25-5WW
Warm wit3500K≥90Ra360°3066124VDC5W/MIP65
UTNF-360D25-5NW
Natuurlijk wit4000K≥90Ra360°29859
24VDC5W/MIP65
UTNF-360D25-5DW
Daglicht Wit5000K≥90Ra360°3096224VDC5W/MIP65
UTNF-360D25-5DW
Daglicht Wit6000K≥90Ra360°3026024VDC5W/MIP65
UTNF-360D25-5R
R: 620-630nm//360°1142324VDC5W/MIP65
UTNF-360D25-5G
G: 520-530nm//360°289
5824VDC5W/MIP65
UTNF-360D25-5B
B: 465-475nm//360°6112
24VDC5W/MIP65
UTNF-360D25-5Y
Y: 585-595nm//360°971924VDC5W/MIP65
UTNF-360D25-5P
Pink//360°2104224VDC5W/MIP65
UTNF-360D25-5O
Orange 605-615nm//360°1252524VDC5W/MIP65
UTNF-360D25-5TW
Tunable white2700K-5000K≥90Ra360°2505024VDC5W/MIP65
UTNF-360D25-5RGB
RGB//360°1442924VDC5W/MIP65

Photoelectric parameters (10W)

Unitop Modelnr.KleurCCTCRIKijkhoekLumen
LM/M
Werkzaamheid LM/WWerkspanningVermogenIP tarief
UTNF-360D25-10WW
Warm wit2100K≥90Ra360°5515524VDC10W/MIP65
UTNF-360D25-10WW
Warm wit2400K≥90Ra360°52553
24VDC10W/MIP65
UTNF-360D25-10WW
Warm wit2700K≥90Ra360°5175224VDC10W/MIP65
UTNF-360D25-10WW
Warm wit3000K≥90Ra360°5295324VDC10W/MIP65
UTNF-360D25-10WW
Warm wit3500K≥90Ra360°6006024VDC10W/MIP65
UTNF-360D25-10NW
Natuurlijk wit4000K≥90Ra360°55655
24VDC10W/MIP65
UTNF-360D25-10DW
Daglicht Wit5000K≥90Ra360°6046024VDC10W/MIP65
UTNF-360D25-10DW
Daglicht Wit6000K≥90Ra360°58658
24VDC10W/MIP65
UTNF-360D25-10R
R: 620-630nm//360°2462524VDC10W/MIP65
UTNF-360D25-10G
G: 520-530nm//360°5025024VDC10W/MIP65
UTNF-360D25-10B
B: 465-475nm//360°11411
24VDC10W/MIP65
UTNF-360D25-10Y
Y: 585-595nm//360°2092124VDC10W/MIP65
UTNF-360D25-10P
Pink//360°4094124VDC10W/MIP65
UTNF-360D25-10O
Orange 605-615nm//360°2392424VDC10W/MIP65
UTNF-360D25-10TW
Tunable white2700K-5000K≥90Ra360°5175024VDC10W/MIP65
UTNF-360D25-10RGB
RGB//360°2482424VDC10W/MIP65

Photoelectric parameters (16W)

Unitop Modelnr.KleurCCTCRIKijkhoekLumen
LM/M
Werkzaamheid LM/WWerkspanningVermogenIP tarief
UTNF-360D25-16RGBW
RGB+2200K//360°457
9124VDC16W/MIP65
UTNF-360D25-16RGBW
RGB+2700K//360°475
9524VDC16W/MIP65
UTNF-360D25-16RGBW
RGB+3200K//360°4809624VDC16W/MIP65
UTNF-360D25-16RGBW
RGB+4500K//360°4829624VDC16W/MIP65
UTNF-360D25-16RGBW
RGB+5500K//360°4929824VDC16W/MIP65
UTNF-360D25-16RGBW
RGB+6500K//360°4859724VDC16W/MIP65

Cable Entry:

cable entry

Let op:

1. Ga naar de Download Sectie voor meer informatie.

2. Suggested the installation of 360° LED Neon Flex to be made by the manufacturer, agent, or other qualified people.

3. Bestudeer de bovenstaande specificatie voordat u tot installatie overgaat.

4. De bovenstaande gegevens zijn gebaseerd op ons standaardproduct. Houd rekening met uw werkelijke productgegevens als er een klein verschil is.

5. De bovenstaande schema's zijn van ons standaardproduct. Raadpleeg uw bestaande product als er een klein verschil is.

6. Het wattage van de LED-driver moet ten minste 1,2 keer het totale wattage zijn van de LED Flex Neon die wordt gebruikt voor de voeding.

7. Sluit de strips om veiligheidsredenen niet rechtstreeks op het lichtnet aan.

8. Alle zure of alkalische stoffen zijn verboden.

9. Geen voorafgaande kennisgeving indien dit product of deze specificatie wordt bijgewerkt.

10. Unitop behoudt zich het definitieve recht voor de bovenstaande specificatie uit te leggen.

The following shows the main accessories of 360° LED Neon Flex：

Accessoires
Accessories2
Accessories3

Als je meer informatie wilt over de accessoires, raadpleeg dan onze Specificatie.

Laat het ons gerust weten als je unieke accessoires nodig hebt.

LED Neon Flex in Brugverlichting

LED Neon Flex in de bouw van decoratie

LED Neon Flex in Landschapsverlichting

LED Neon Flex in zwembad

LED Neon Flex in pretpark

LED Neon Flex in reclame

LED Neon Flex in huisverlichting

LED Neon Flex in Winkelcentrum

LED Neon Flex in Kantoorverlichting

LED Neon Flex in tentoonstellingshal

LED Neon Flex in Plafondverlichting

LED Neon Flex in Hotelverlichting

LED Neon Flex in Restaurantverlichting

LED Neon Flex in bootverlichting

LED Neon Flex in Voertuigverlichting

LED Neon Flex in gangpadverlichting

What material options are available for end caps ?

There are two materials available for you to choose from:

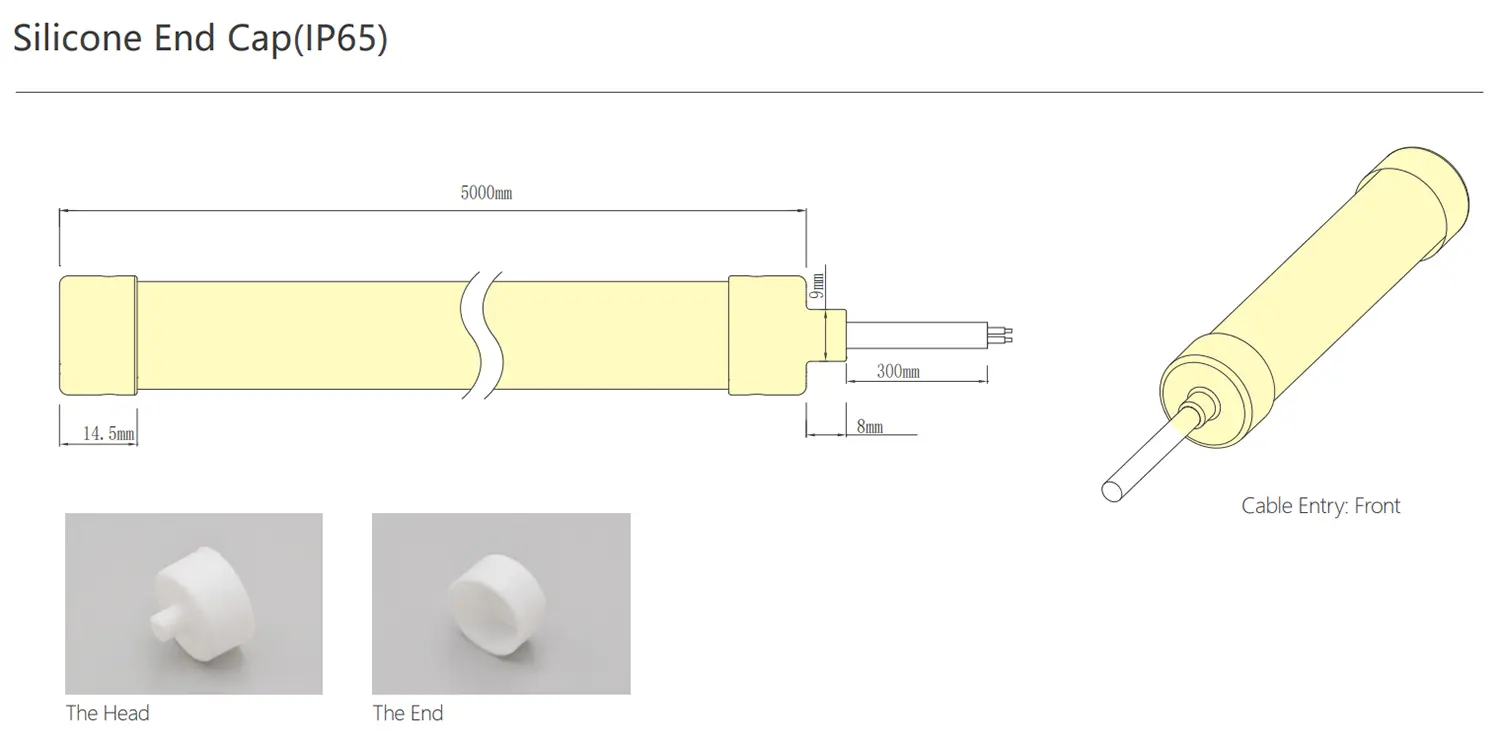

1. Silicone End Cap: Made of high-quality silicone, offering good flexibility and durability, easy to install by directly fitting onto the end of the neon strip, semi-transparent, allowing light to pass through without interruption.

silicone end cap 1

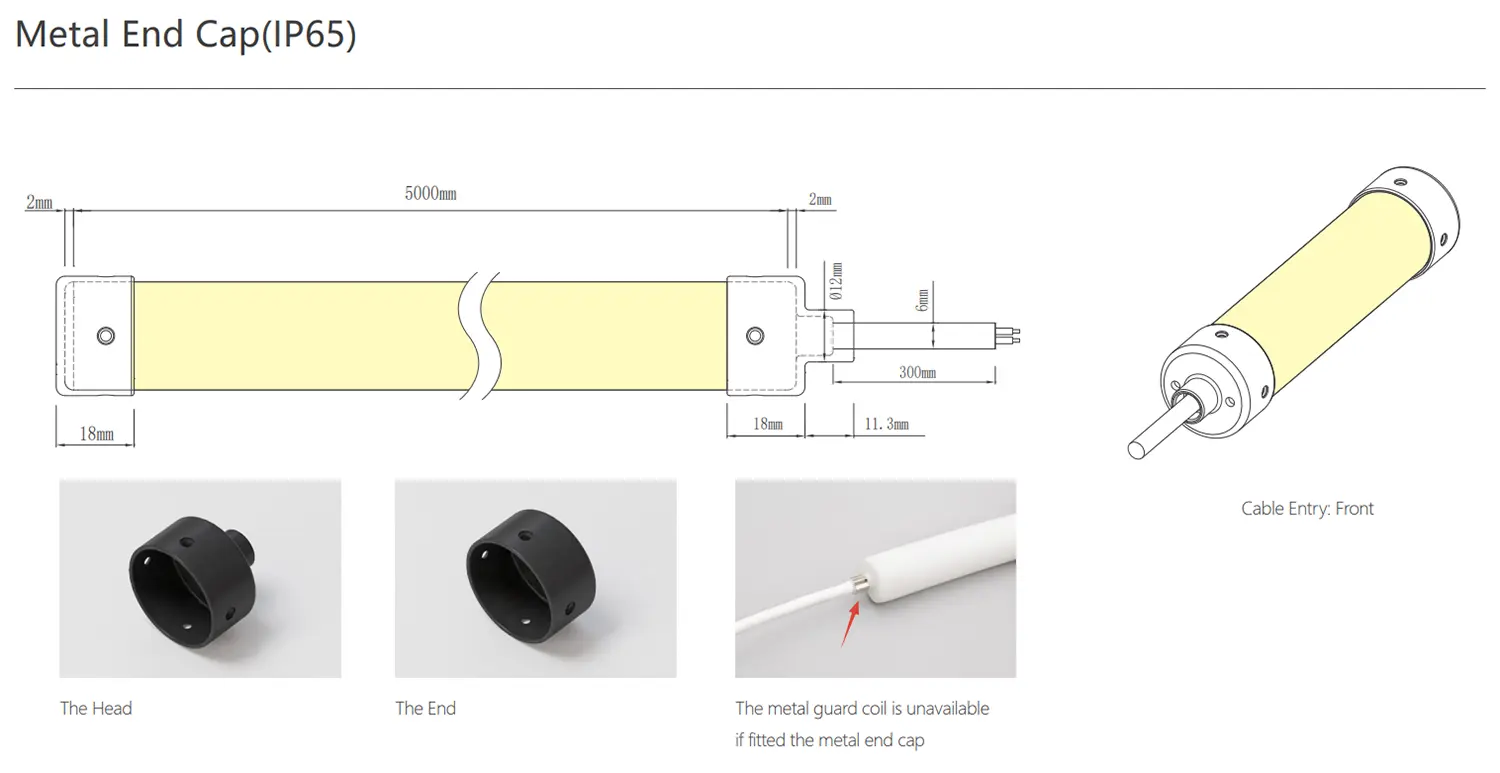

2. Metal End Cap: Heat-resistant metal material, suitable for high-temperature environments, requires screw fixing, providing a more secure installation than silicone end caps.

metal end cap

What’s the neon flex’s minimum bending radius and safe shaping method?

To ensure the life and reliability of the strip, please ensure that the diameter of the bending should be greater than 200mm.

For installation of strips over 2 meters in length, it’s required that two individuals collaborate on the task.

During installation, please avoid twisting or irregular bending of the strip, and avoid any operation that will scratch the strip, otherwise it may cause irreparable damage to the product.

Installatie

Can I cut the 360° LED Neon Flex myself?

This product should not be cut, as improper cutting can damage the strip. Customers are advised not to cut the product themselves.

If a specific length is required, please inform us in advance so we can customize it for you. Thank you.

Are there any precautions regarding the power supply?

For optimal performance and safety, use a DC24V isolated constant voltage switching power supply with a ripple voltage under 5%. Using other power supply types may damage the product or pose safety hazards. In practice, maintain a 20% power reserve on your power supply (it is recommended to use only 80% power of the power supply) to ensure stability.

It is strictly prohibited to connect the power supply with electricity in case of electric shock. Please ensure that the voltage of the power supply matches the voltage requirements of the product before proceeding with the wiring.

When using multiple power supplies, the situation of parallel connection of the positive pole of the power supply should be avoided. It will lead to instability of the power supply system and damage to the product after long-term operation.

Can LED Neon Flex be used in newly renovated environments?

Test results indicate that formaldehyde and benzene substances can cause yellowing of silicone products. When silicone products are used indoors in newly decorated environments with epoxy floor paint, wall paint, wallpaper adhesive, various decoration materials, or new furniture, there is a likelihood of formaldehyde and benzene emissions.

To prevent the adverse effects on silicone materials, it is recommended to either remove formaldehyde and benzene from the environment after the completion of new decoration before installing the strip or ensure proper ventilation for a period of time before installation.

Specificatie:

360° LED Neon Flex D25 IP65 24VDC

IES Files:

2100K/2400K/2700K/3000K/3500K/4000K/5000K/6000K

Spectrum Test Rapporten:

2100K/2400K/2700K/3000K/3500K/4000K/5000K/6000K
