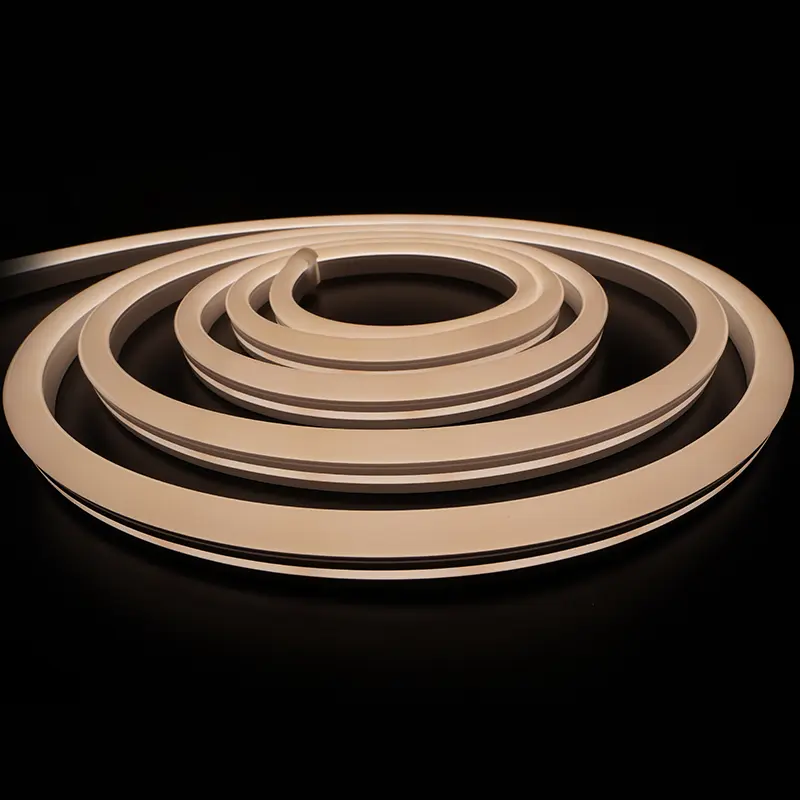

Side Bend LED Neon Flex Rope Light 1225 IP68 24VDC 12W/M

This Side Bend LED Neon Flex is with horizontal-bending design, 12mm light-emitting surface, 25mm height, different white colors, RGB, and RGBW for choice. It uses high-quality gas silica gel, yellowing resistance, UV resistance, salt and alkali resistance, high-temperature resistance, and flame retardant. Moreover, it is IP68 ideal for both indoor & outdoor decorative lighting and outdoor building outline lighting.

Model No.:	UTNF-SB1225
Dimension:	12mm(W)x25mm(H)
Voltage:	DC24V
Wattage:	12W/M
CCT:	2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW
CRI:	≥90Ra
Angle:	160°
IP Rate:	IP68

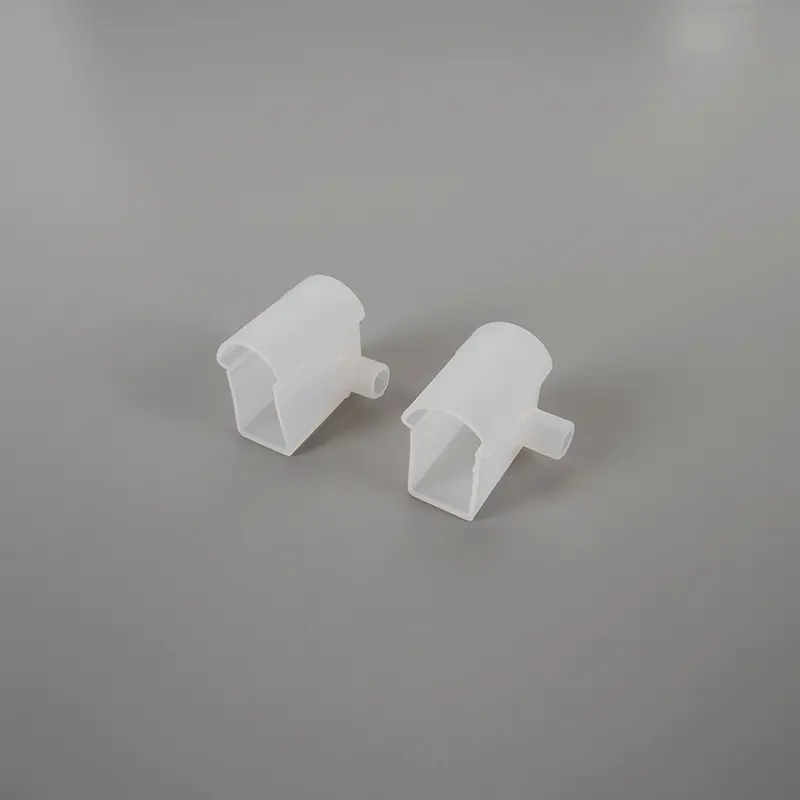

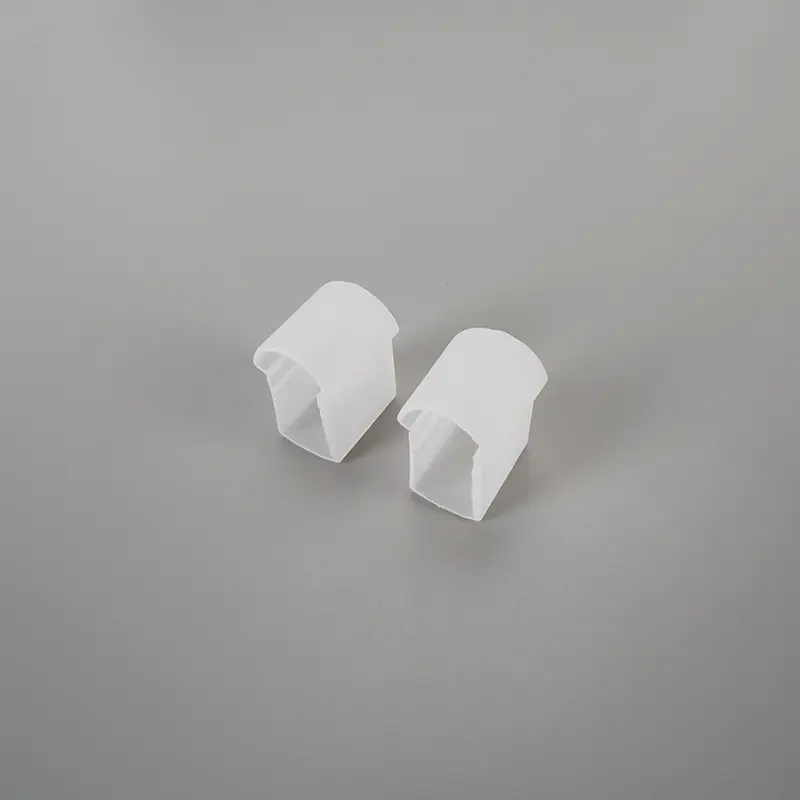

Features Specification Accessories Application FAQ Downloads

Unitop Side Bend Neon Flex LED Strip Lights 1225 have so many unique features, including but not limited to below:

160°:

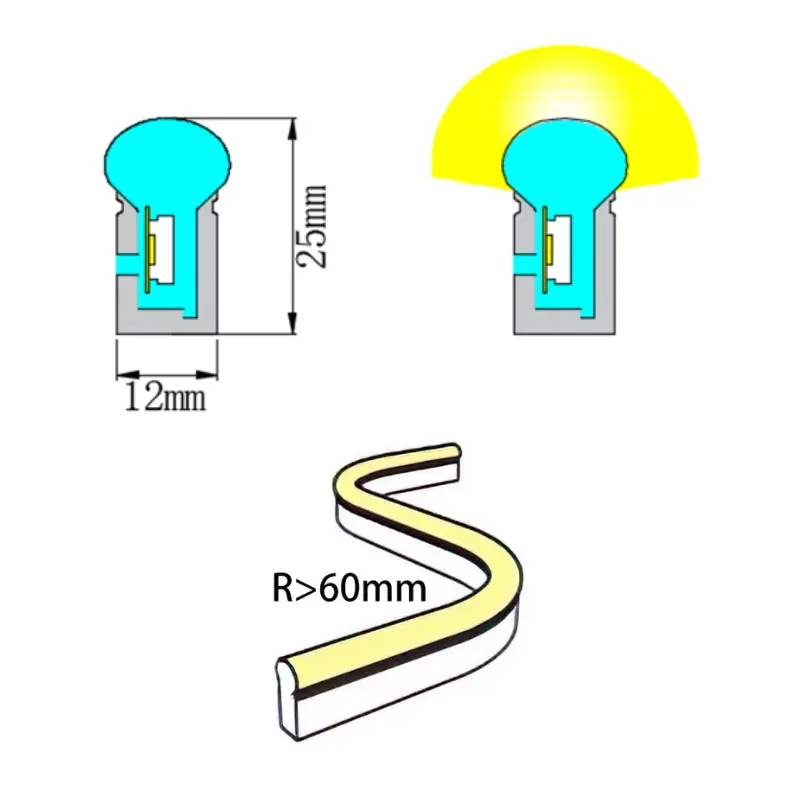

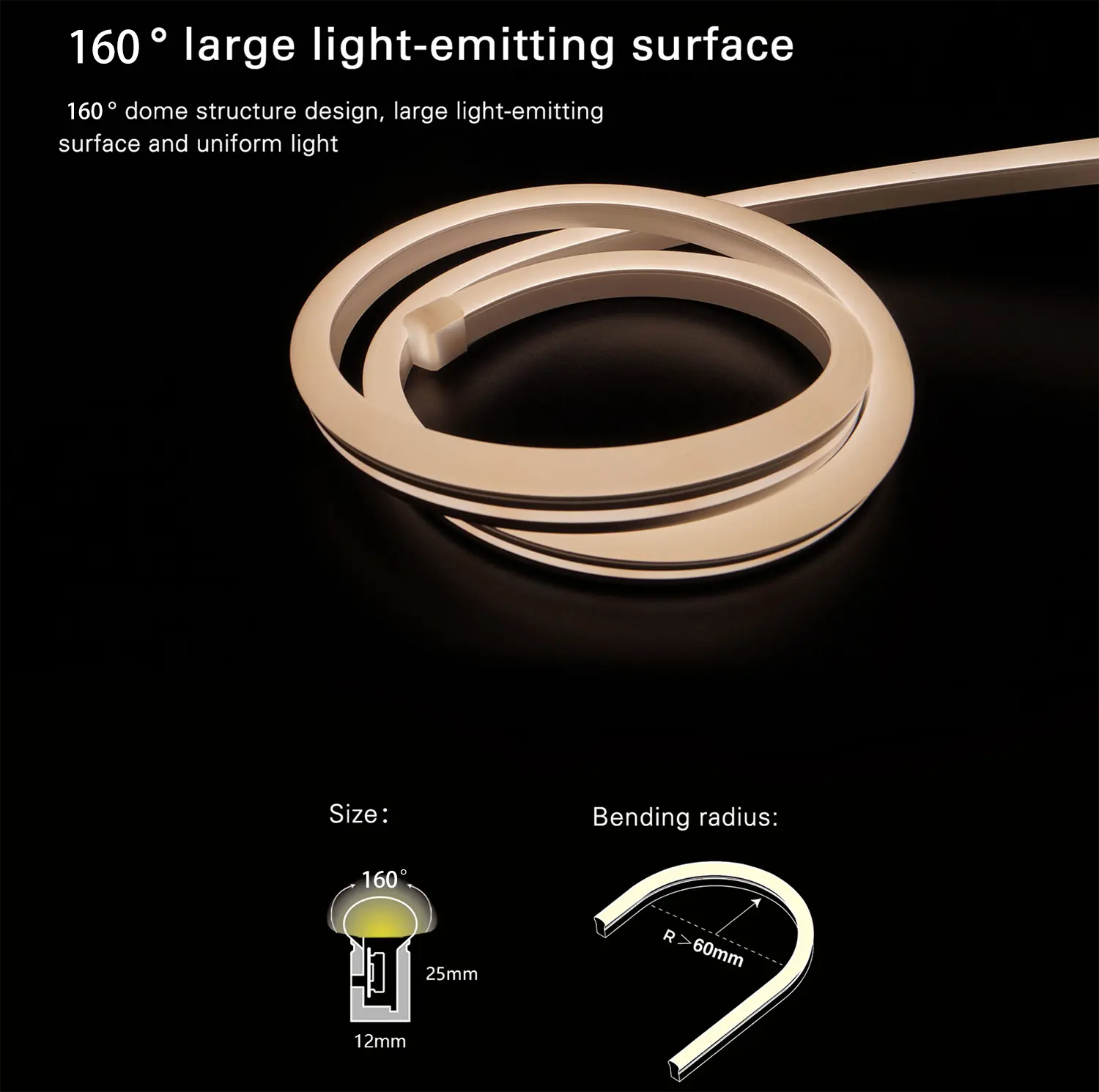

160° dome structure design, large light-emitting surface, and uniform light.

160 degrees side bend LED Neon Flex 1225

High CRI More Than 90Ra:

The CRI of the LEDs we are using is all more than 90Ra. Thus we also call our LED Neon Flex: High CRI LED neon flex strip lighting. Generally speaking, CRI(color rendering index) values of 90 and above are considered excellent; however, values below 80 are generally considered not good.

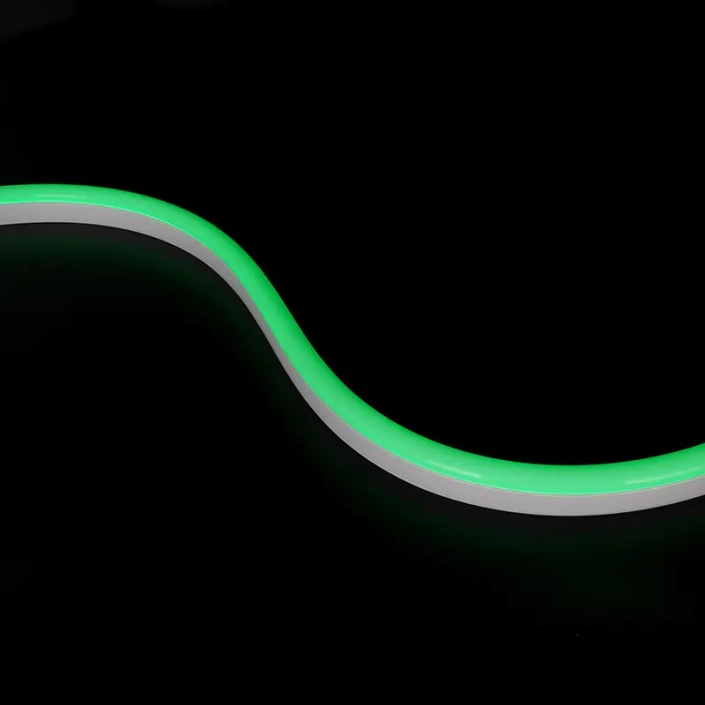

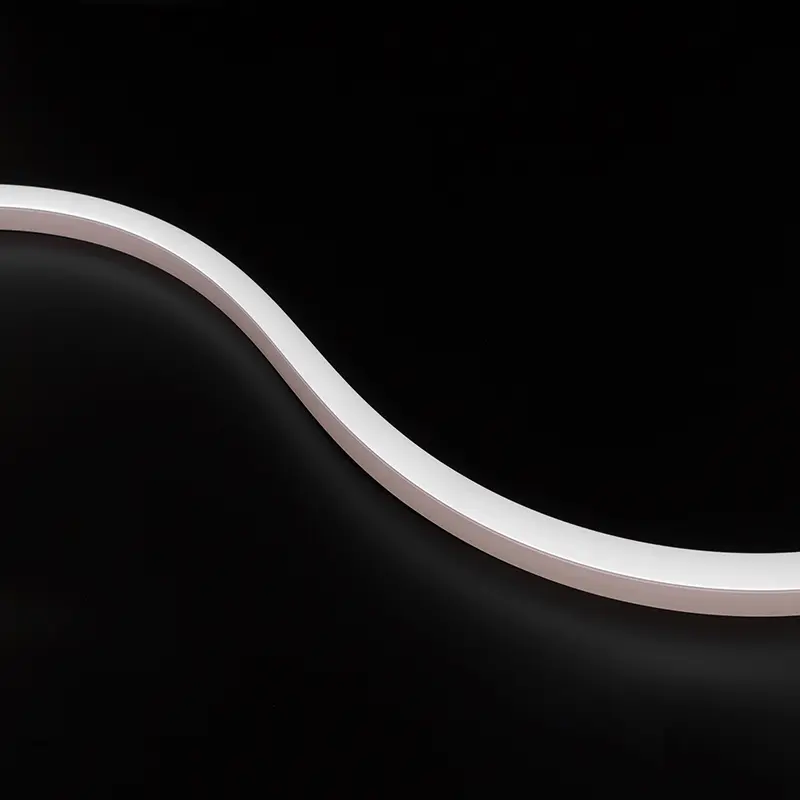

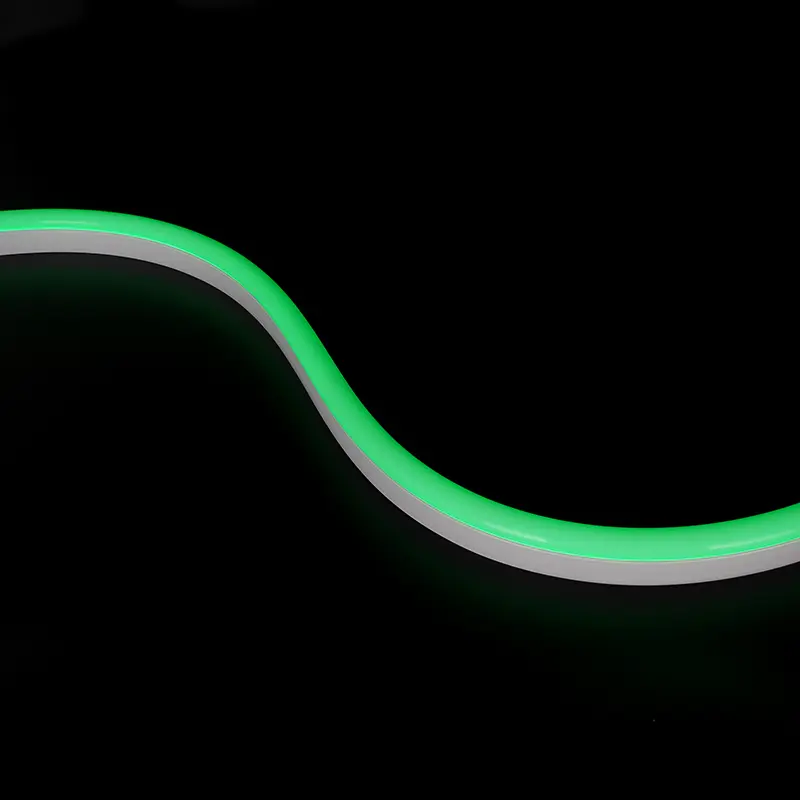

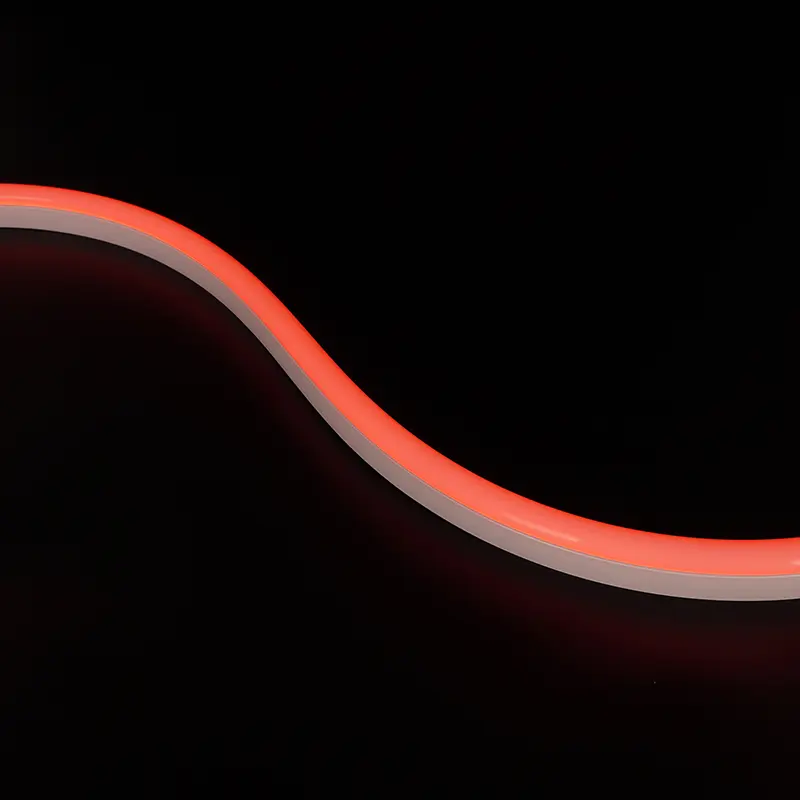

Various Colors:

Despite the typical white color: 2100K, 2700K, 3000K, 3500K, 4000K, and 5000K, we also have tunable white/color temperature adjustable, RGB, RGBW for your choice.

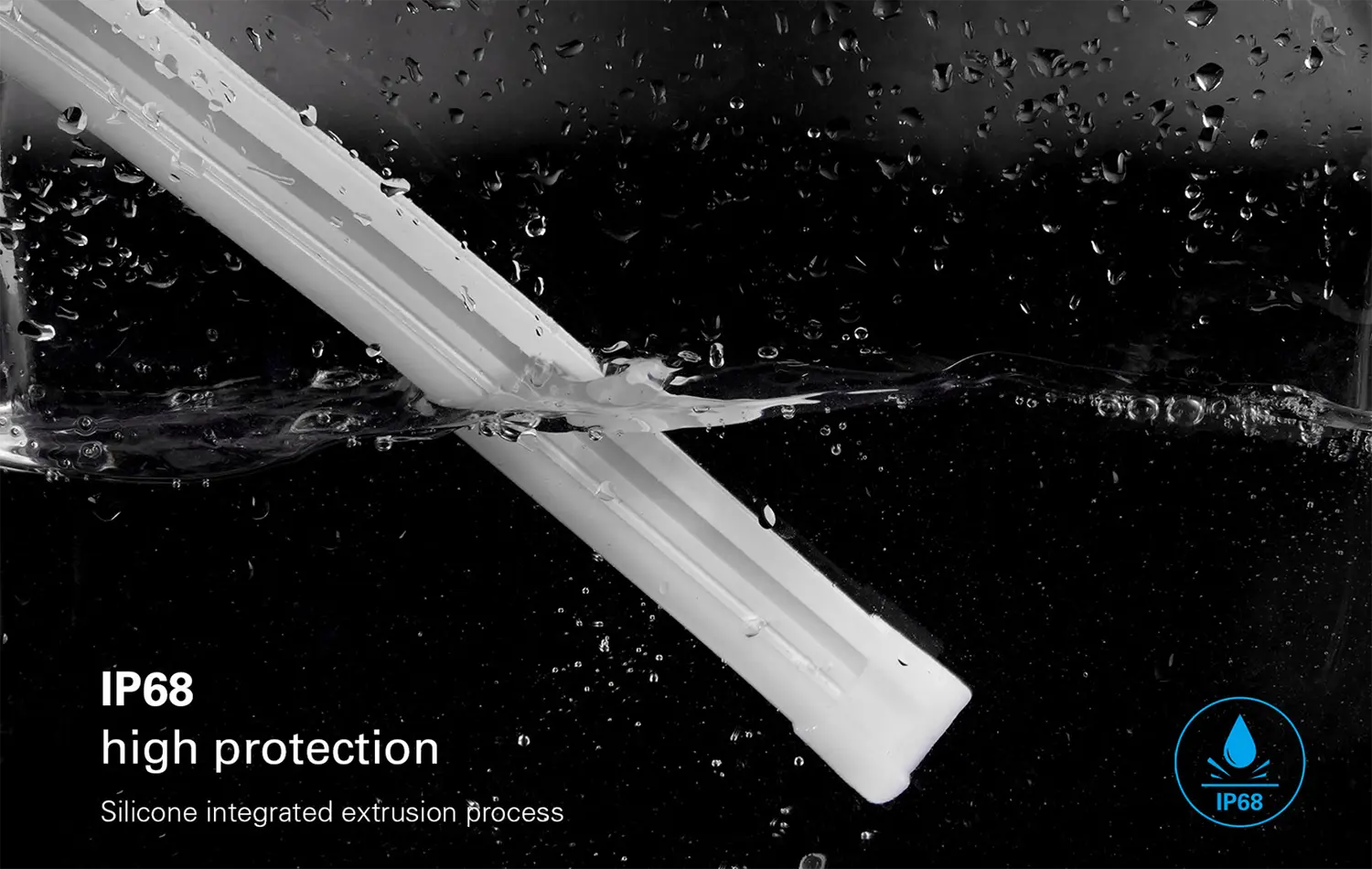

IP 68:

Our LED Neon Flex uses high-quality gas silica gel, which is yellow resistance, UV resistance, salt and alkali resistance, high-temperature resistant, and flame retardant. It is IP68.

Cut Freely:

There are clear silk-print cutting marks on the back of the LED Neon Flex for you to cut conveniently and quickly.

Various Installation Ways:

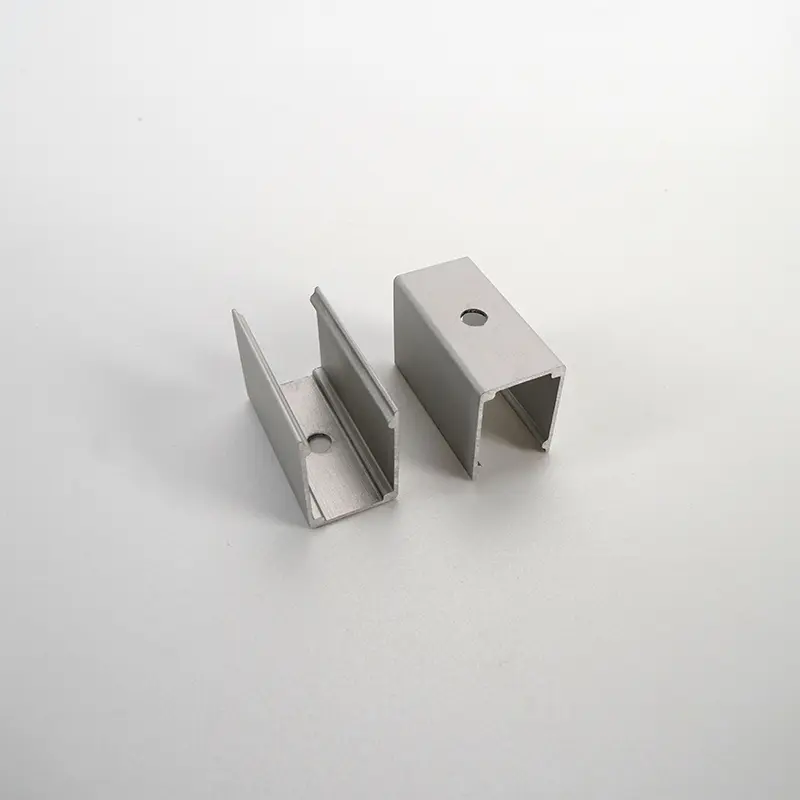

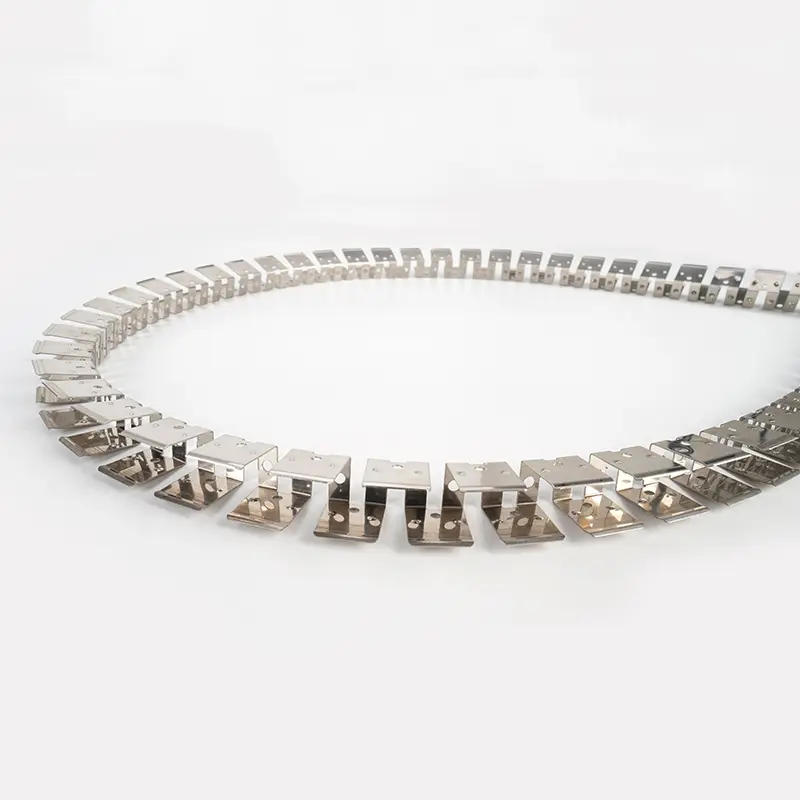

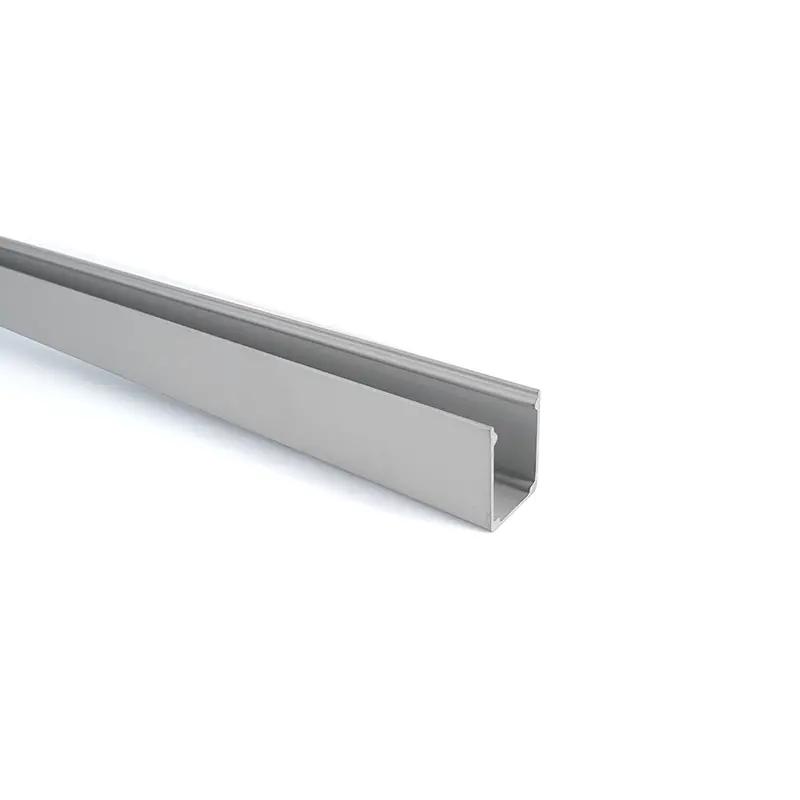

You can install our Side Bend LED Neon Flex in various ways, including A: Installation by aluminum profile. B: Installation by mounting clips. C. Installation by bendable profile.

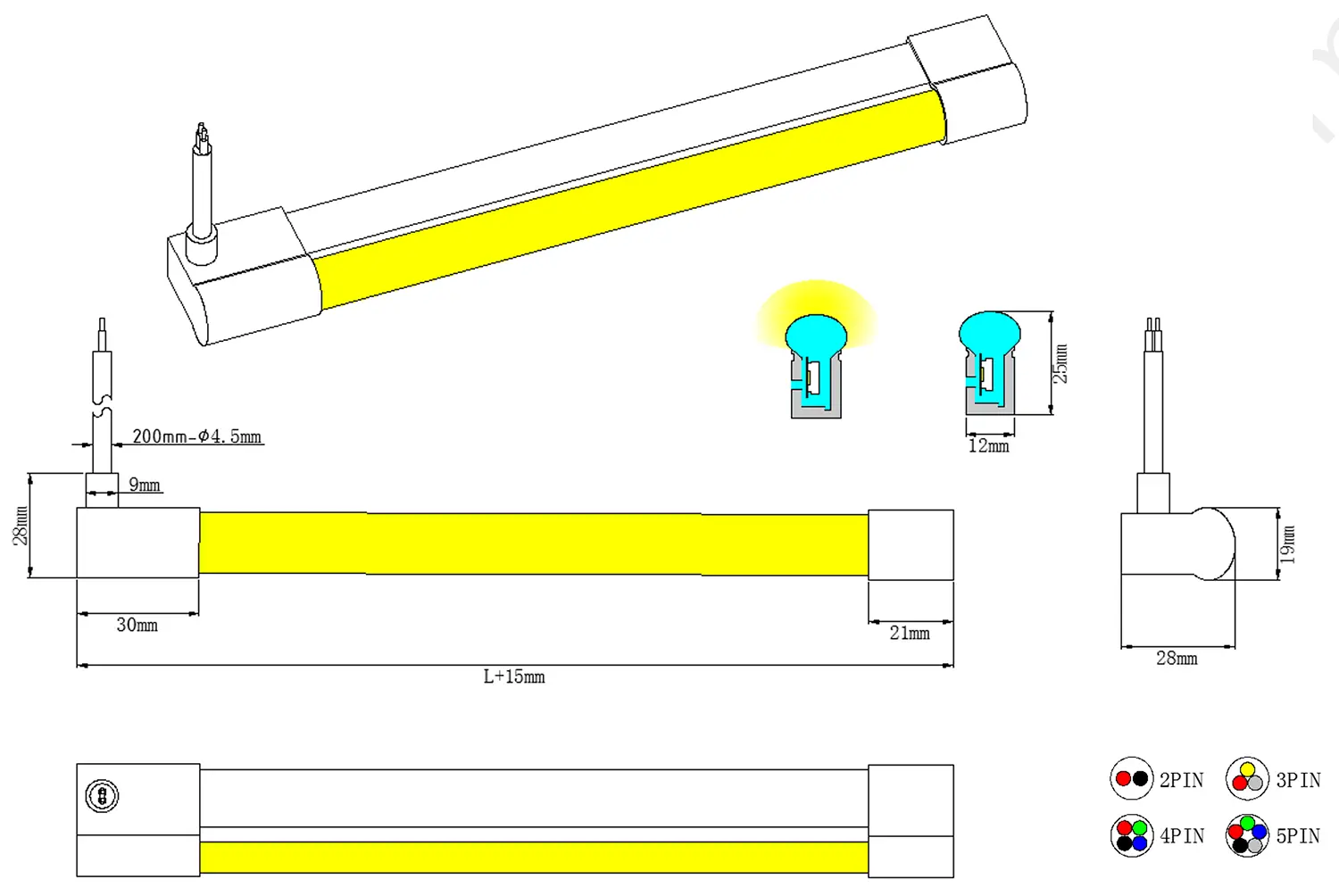

Dimension and Length:

Note: The length of “L” is the length of the Neon Flex, which is the integer multiple of the minimum cutting length.

Electrical and Lumen Data:

Unitop Model No.	Color	CCT	CRI	View Angle	Lumen LM/M	Efficacy LM/W	Working Voltage	Power	Minimum Cutting Length	IP Rate
UTNF-SB1225-WW	Warm White	2100K	≥90Ra	160°	323	27	24VDC	12W/M	50mm	IP68
UTNF-SB1225-WW	Warm White	2700K	≥90Ra	160°	344	29	24VDC	12W/M	50mm	IP68
UTNF-SB1225-WW	Warm White	3000K	≥90Ra	160°	410	34	24VDC	12W/M	50mm	IP68
UTNF-SB1225-WW	Warm White	3500K	≥90Ra	160°	418	35	24VDC	12W/M	50mm	IP68
UTNF-SB1225-NW	Natural White	4000K	≥90Ra	160°	430	36	24VDC	12W/M	50mm	IP68
UTNF-SB1225-DW	Daylight White	5000K	≥90Ra	160°	418	35	24VDC	12W/M	50mm	IP68
UTNF-SB1225-TW	Tunable White	2700K+5000K	≥90Ra	160°	WW: 480 DW: 516 WW+DW: 984	WW: 40 DW: 43 WW+DW: 41	24VDC	12W/C	50mm	IP68
UTNF-SB1225-RGB	RGB	RGB	n.a.	160°	R: 41.8 G: 126 B: 22.2 RGB: 192	R: 11 G: 28 B: 6 RGB: 16	24VDC	12W/M	62.5mm	IP68
UTNF-SB1225-RGBW	RGBW	RGB+2700K	n.a.	160°	R: 50 G: 115 B: 25 W: 140 RGB: 194 RGBW: 331	R: 14 G: 32 B: 7 W: 39 RGB: 18 RGBW: 23	24VDC	14.4W/M	66.67mm	IP68
UTNF-SB1225-RGBW	RGBW	RGB+3000K	n.a.	160°	R: 50 G: 115 B: 25 W: 144 RGB: 194 RGBW: 331	R: 14 G: 32 B: 7 W: 40 RGB: 18 RGBW: 23	24VDC	14.4W/M	66.67mm	IP68
UTNF-SB1225-RGBW	RGBW	RGB+4000K	n.a.	160°	R: 50 G: 115 B: 25 W: 148 RGB: 194 RGBW: 346	R: 14 G: 32 B: 7 W: 41 RGB: 18 RGBW: 24	24VDC	14.4W/M	66.67mm	IP68
UTNF-SB1225-RGBW	RGBW	RGB+5000K	n.a.	160°	R: 50 G: 115 B: 25 W: 148 RGB: 194 RGBW: 331	R: 14 G: 32 B: 7 W: 41 RGB: 18 RGBW: 23	24VDC	14.4W/M	66.67mm	IP68

Wiring Diagram:

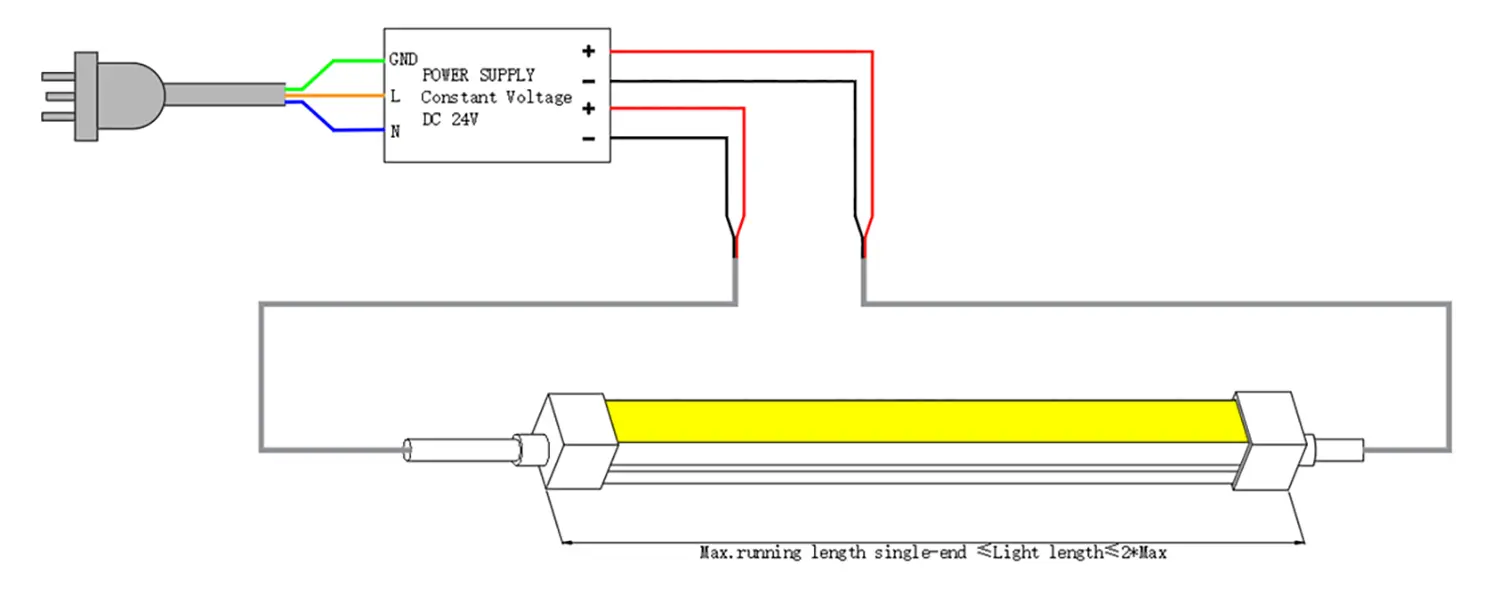

1. Single-end Wiring:

Please use a constant voltage power supply with corresponding output voltage, and the rated wattage of the power supply shall be 25% more than the actual power consumption of light to increase its life expectancy.
This wiring diagram uses the mains of AC220-240V with brown and blue wires as an example, and please connect with the corresponding live and neutral wires for other electricity mains.

Dimming frequency ranges from 100Hz to 2000Hz, and 500Hz is recommended.

Light Length:
The length of the longest single light in parallel connection or sum of LED Neon Flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to minimize voltage drop?
1. Please ensure the cable length is not more than the table “Max. Cable Length” according to light length and its wire gauge.
2. Please ensure the light length is less than the cable “Max. Running Length Single-end Wiring”.

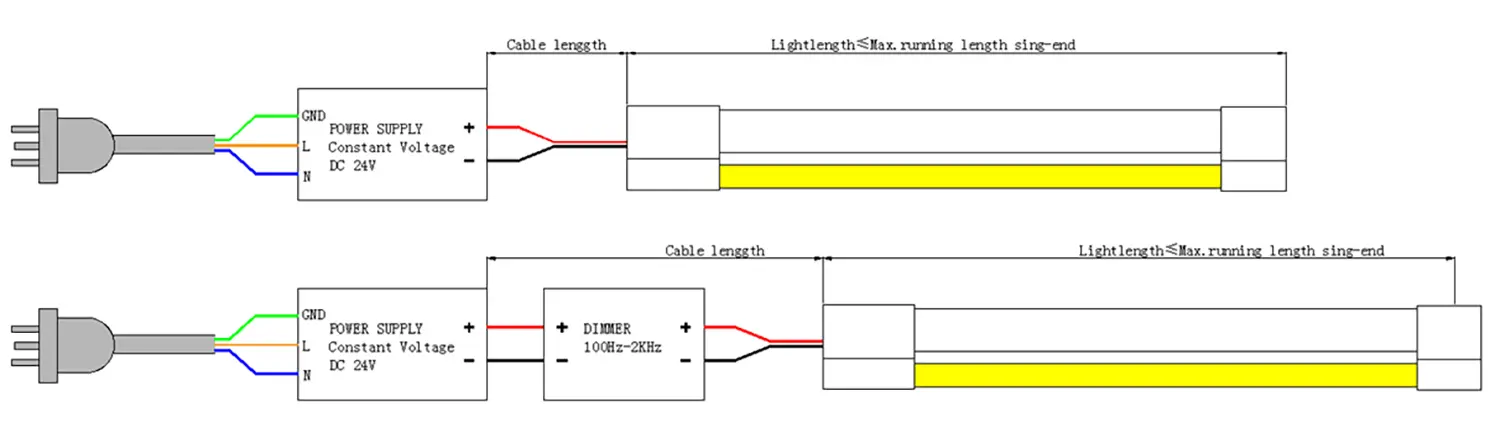

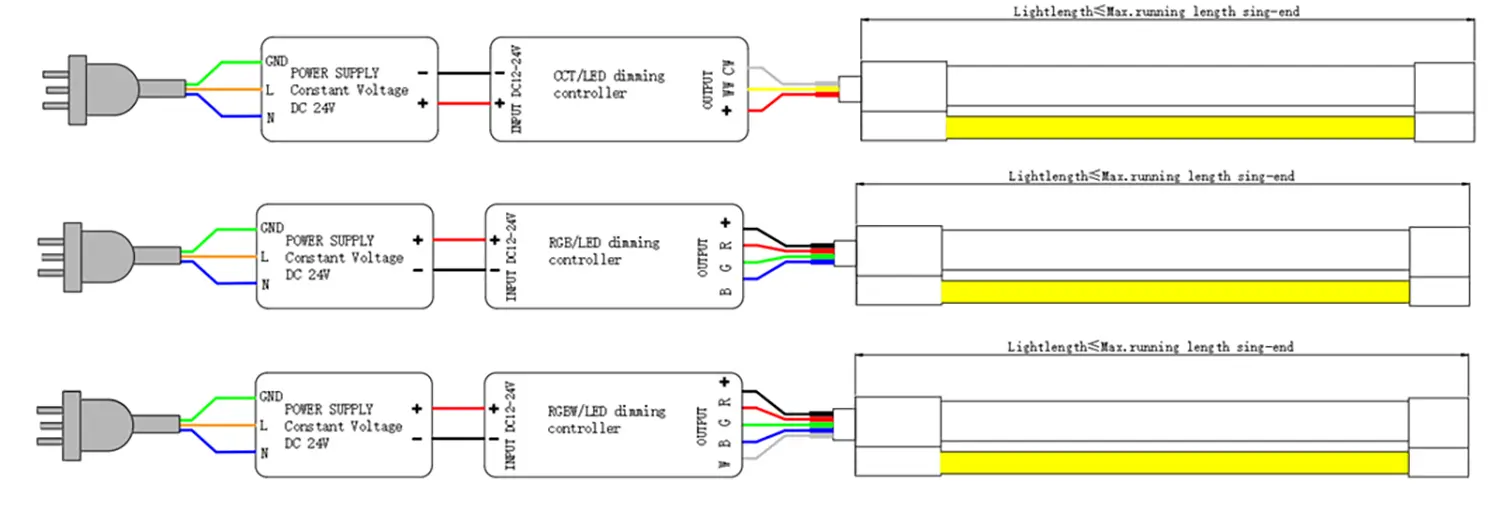

single end side bend LED Neon Flex 1225 1

single end side bend LED Neon Flex 1225 2

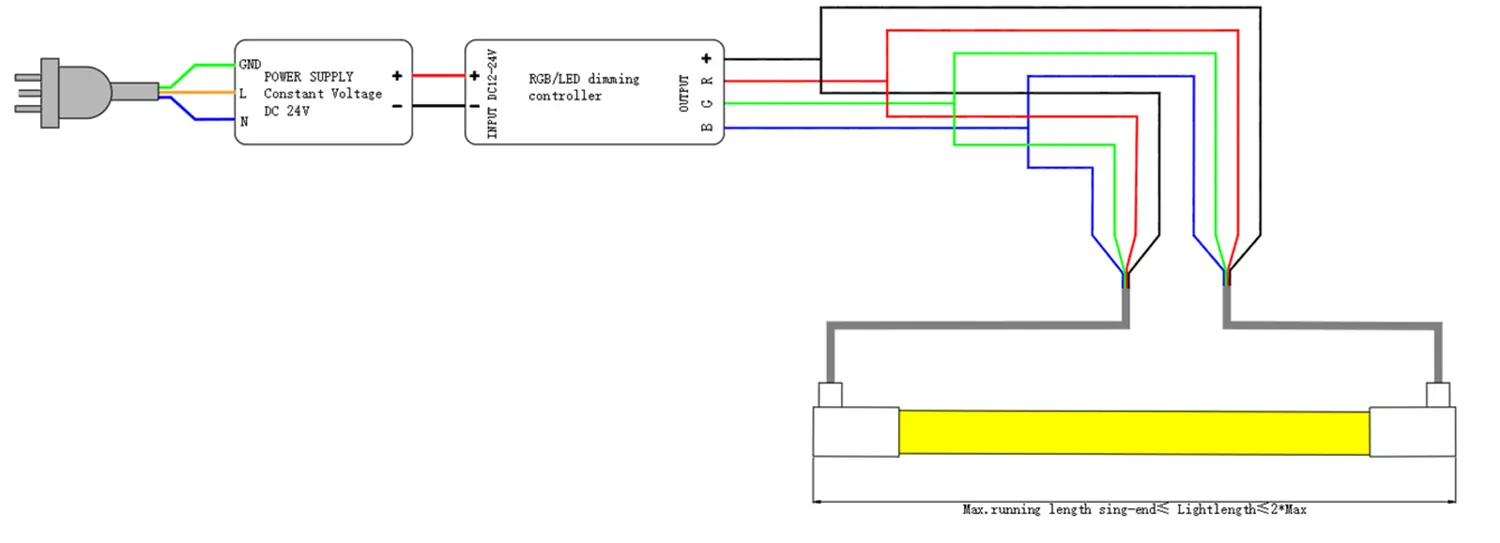

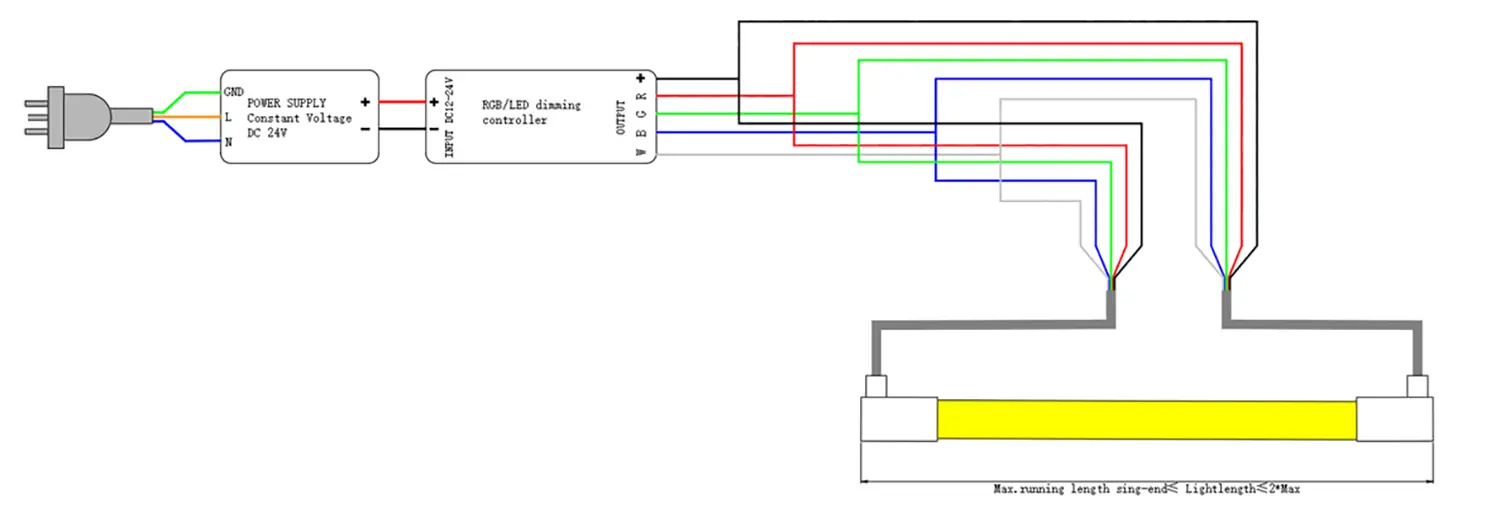

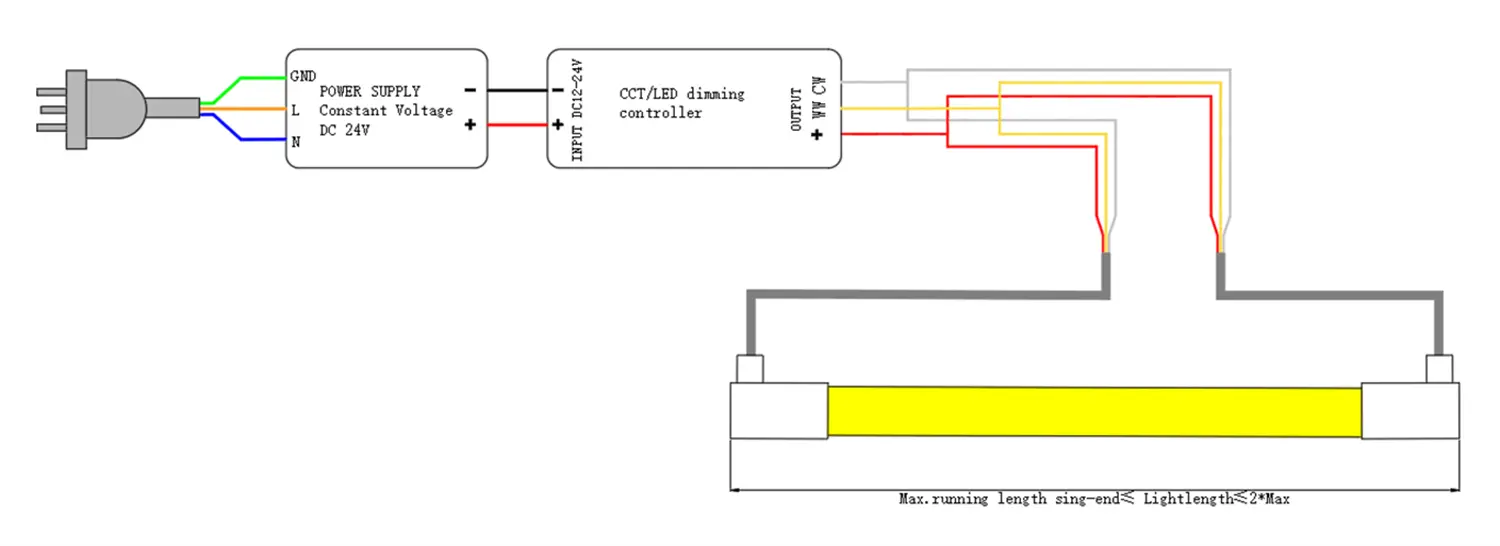

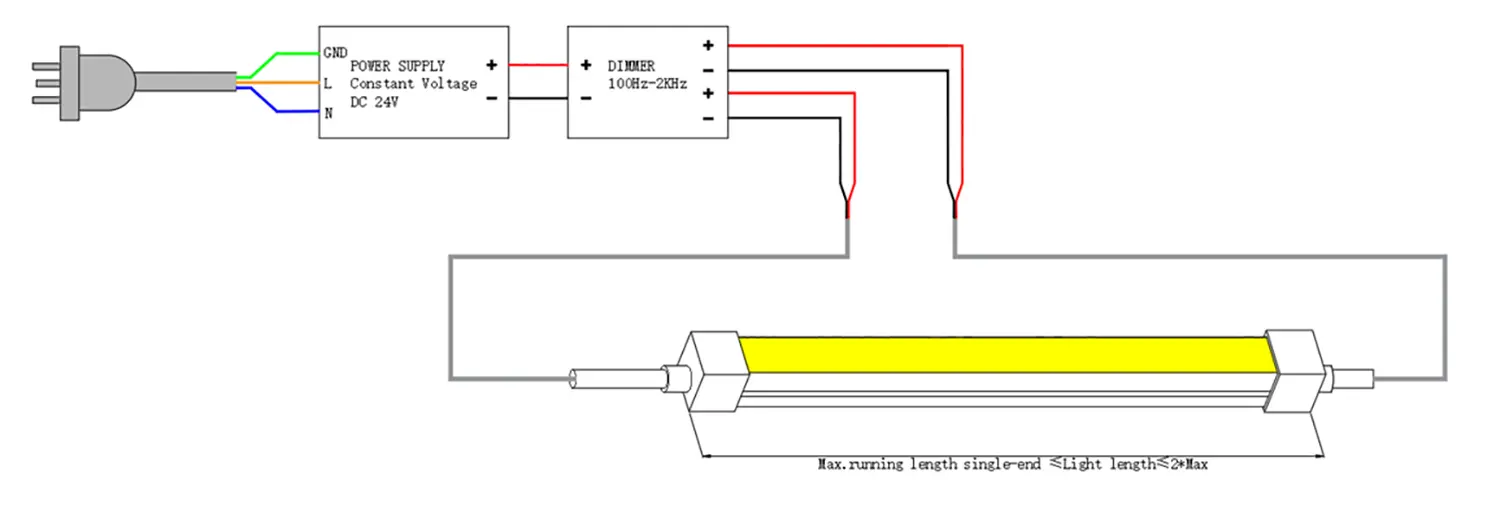

2. Double-end Wiring:

The below wiring diagram with double-end wiring to run length longer than the max running length for single-end wiring but less than twice the value.

Please ensure the polarity connection is correct on both ends, and a short circuit might occur if powering the light from both ends with reverse polarity. It is not recommended to connect both ends of the neon flex with two separate power supplies, which would lead to overloading and overheating problems if either power supply is failed.

Light Length:
The length of the longest single light in parallel connection or sum of neon flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to Minimize Voltage Drop:
1. It is optimal to position the power supply in the middle of a single light or multiple lines in a daisy chain to keep the equivalent cable length on both ends for double-end wiring.
2. Please ensure the cable length is not more than the table “Max. Cable Length” according to half of the light length and its wire gauge.
3. Please ensure the light length is less than the table “Max. Running Length Double-end Wiring”.
