Top Bend LED Neon Flex LED Strip Lights 1313 IP67 24VDC 12W/M

This Top Bend LED Neon Flex Rope Light is with vertical-bending design, 13mm light-emitting surface, 13mm height, different white colors, RGB, and RGBW for choice. It uses high-quality gas silica gel, yellowing resistance, UV resistance, salt and alkali resistance, high-temperature resistance, and flame retardant. Moreover, it is IP67 ideal for both indoor & outdoor decorative lighting and outdoor building outline lighting.

Model No.:UTNF-TB1313
Dimension:13mm(W)x13mm(H)
Voltage:DC24V
Wattage:12W/M
CCT:2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW
CRI:≥90Ra
Angle:110°
IP Rate:IP67

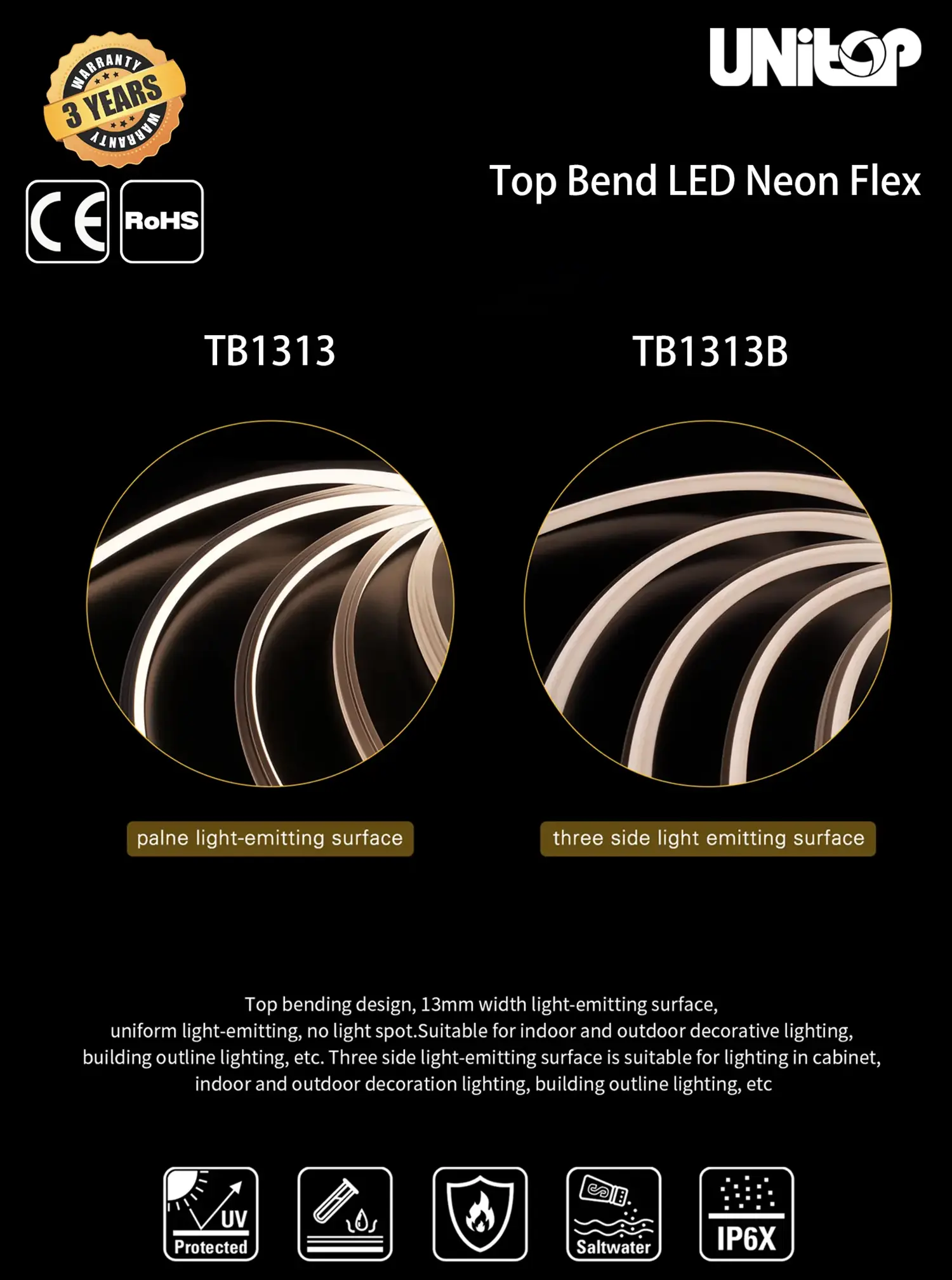

TB1313 Top Bend LED Neon Flex

Unitop Top Bend LED Neon Flex Lighting 1313 has so many unique features, including but not limited to below:

High CRI More Than 90Ra:

The CRI of the LEDs we are using is all more than 90Ra. Thus we also call our LED Neon Flex: High CRI LED Neon Flex Strip Lighting. Generally speaking, CRI(color rendering index) values of 90 and above are considered excellent; however, values below 80 are generally considered not good.

CRI comparison

Various Colors:

Despite the typical white color: 2100K, 2700K, 3000K, 3500K, 4000K, and 5000K, we also have tunable white/color temperature adjustable, RGB, RGBW for your choice.

IP 67:

Our LED Neon Flex uses high-quality gas silica gel, which is yellow resistance, UV resistance, salt and alkali resistance, high-temperature resistant, and flame retardant. It is IP67.

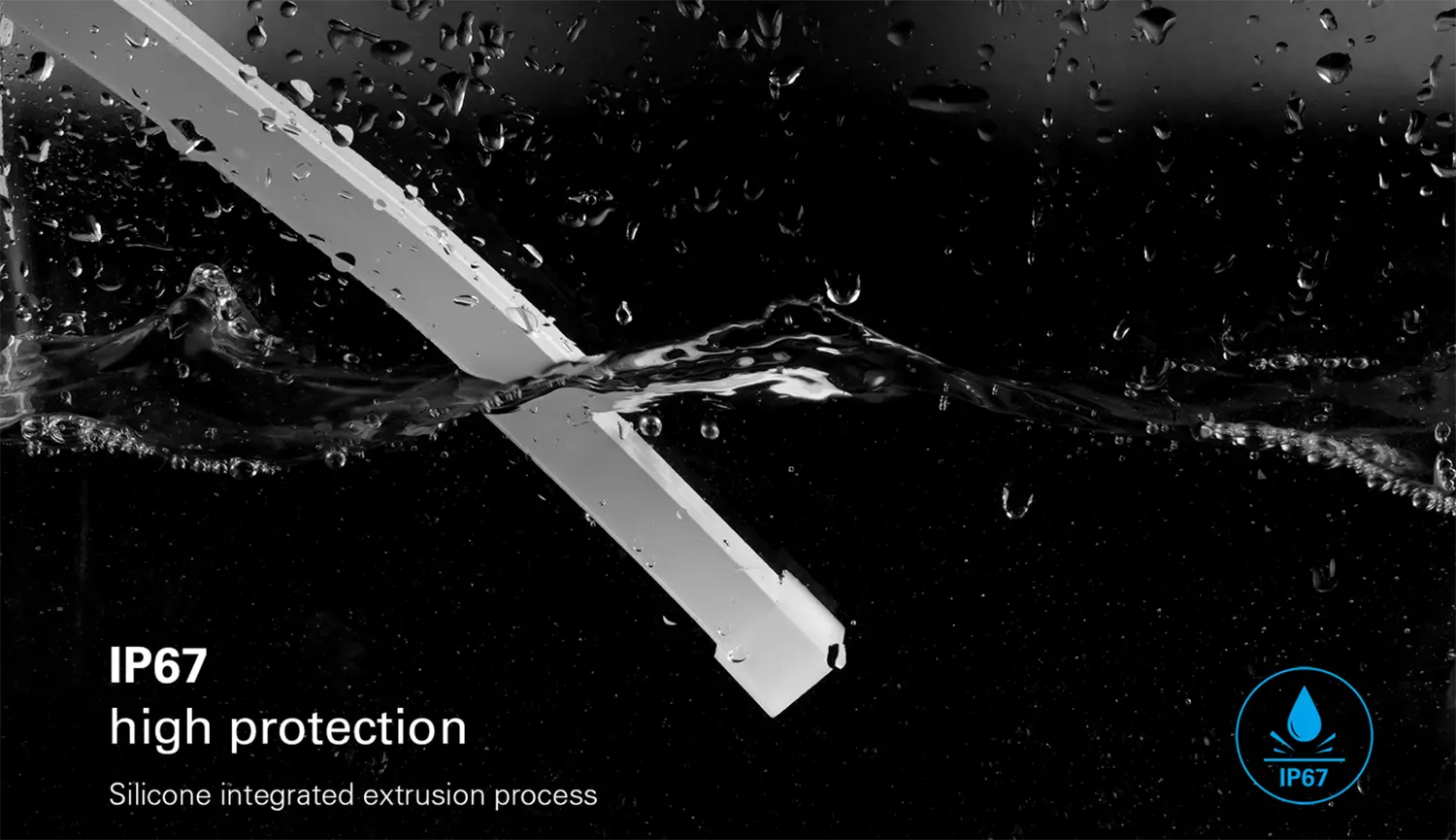

IP67

Cut Freely:

There are clear silk-print cutting marks on the back of the LED Neon Flex for you to cut conveniently and quickly.

cut LED Neon Flex freely

Various Installation Ways:

You can install our Top Bend LED Neon Flex in various ways, including A: Installation by aluminum profile. B: Installation by mounting clips. C. Installation by bendable profile.

Various Installation Methods

Dimension and Length:

Note: The length of “L” is the length of the Neon Flex, which is the integer multiple of the minimum cutting length.

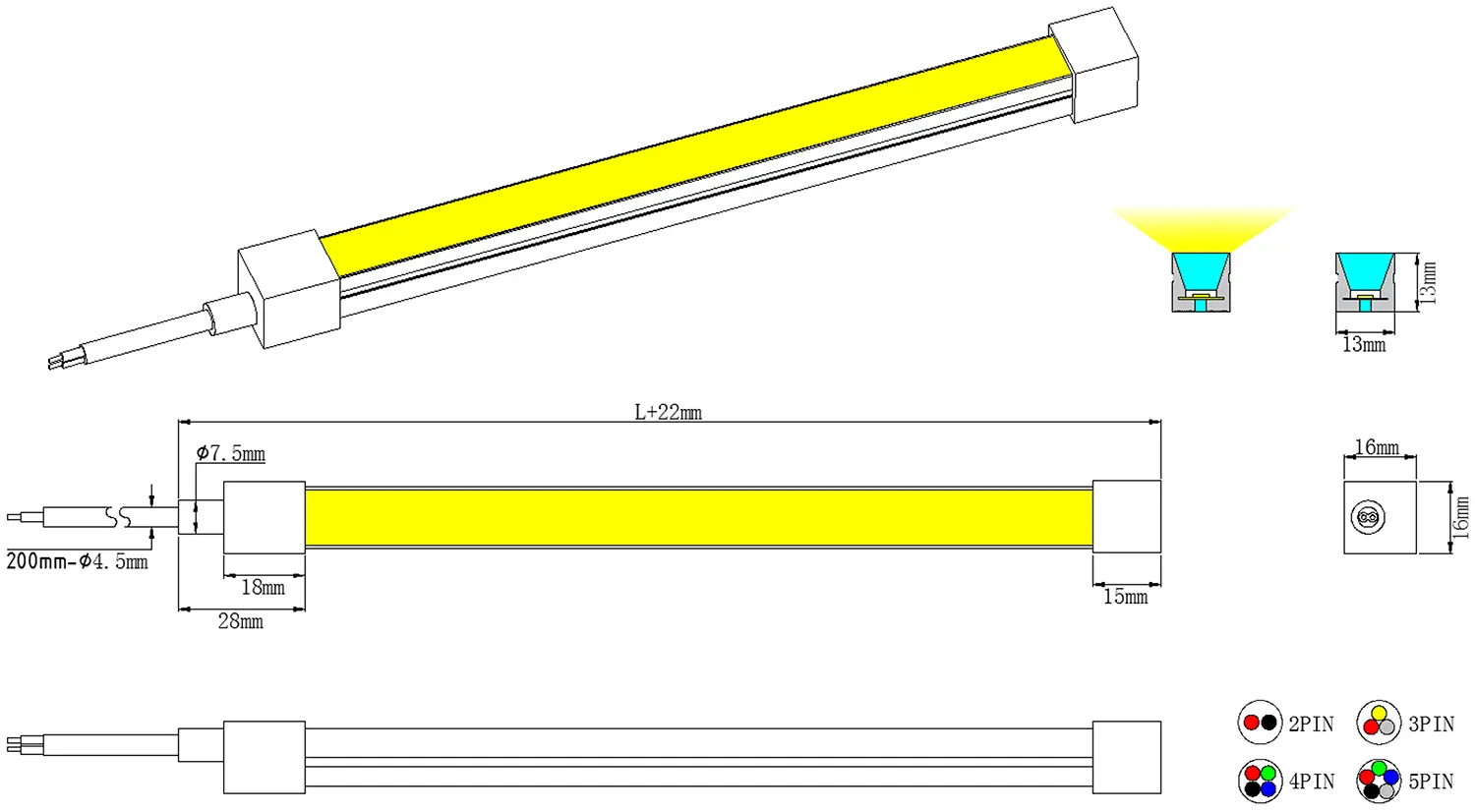

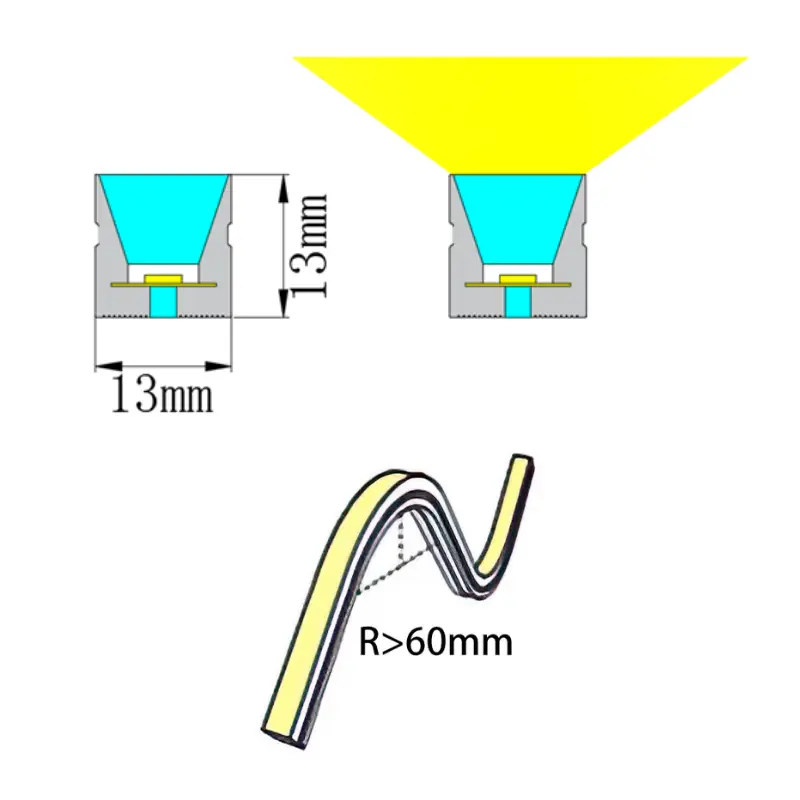

TB1313 Top Bend LED Neon Flex dimension

Electrical and Lumen Data:

Unitop Model No.ColorCCTCRIView AngleLumen
LM/M
Efficacy LM/WWorking VoltagePowerMinimum Cutting LengthIP Rate
UTNF-TB1313WWWarm White2100K≥90Ra110°5514624VDC12W/M50mmIP67
UTNF-TB1313WWWarm White2700K≥90Ra110°6265224VDC12W/M50mmIP67
UTNF-TB1313WWWarm White3000K≥90Ra110°6415324VDC12W/M50mmIP67
UTNF-TB1313WWWarm White3500K≥90Ra110°6705624VDC12W/M50mmIP67
UTNF-TB1313NWNatural White4000K≥90Ra110°6855724VDC12W/M50mmIP67
UTNF-TB1313DWDaylight White5000K≥90Ra110°6855724VDC12W/M50mmIP67
UTNF-TB1313TWTunable White2700K+5000K≥90Ra110°WW: 672
DW: 732
WW+DW: 1392
WW: 56
DW: 61
WW+DW: 58
24VDC12W/C50mmIP67
UTNF-TB1313RGBRGBRGBn.a.110°R: 61
G: 194
B: 37
RGB: 288
R: 16
G: 43
B: 10
RGB: 24
24VDC12W/M62.5mmIP67
UTNF-TB1313RGBWRGBWRGB+2700Kn.a.110°R: 68
G: 162
B: 40
W: 198
RGB: 270
RGBW: 461
R: 19
G: 45
B: 11
W: 55
RGB: 25
RGBW: 32
24VDC14.4W/M66.67mmIP67
UTNF-TB1313RGBWRGBWRGB+3000Kn.a.110°R: 68
G: 162
B: 40
W: 205
RGB: 270
RGBW: 475
R: 19
G: 45
B: 11
W: 57
RGB: 25
RGBW: 33
24VDC14.4W/M66.67mmIP67
UTNF-TB1313RGBWRGBWRGB+4000Kn.a.110°R: 68
G: 162
B: 40
W: 209
RGB: 270
RGBW: 475
R: 19
G: 45
B: 11
W: 58
RGB: 25
RGBW: 33
24VDC14.4W/M66.67mmIP67
UTNF-TB1313RGBWRGBWRGB+5000Kn.a.110°R: 68
G: 162
B: 40
W: 209
RGB: 270
RGBW: 475
R: 19
G: 45
B: 11
W: 58
RGB: 25
RGBW: 33
24VDC14.4W/M66.67mmIP67

Wiring Diagram:

1. Single-end Wiring:

Please use a constant voltage power supply with corresponding output voltage, and the rated wattage of the power supply shall be 25% more than the actual power consumption of light to increase its life expectancy.
This wiring diagram uses the mains of AC220-240V with brown and blue wires as an example, and please connect with the corresponding live and neutral wires for other electricity mains.

Dimming frequency ranges from 100Hz to 2000Hz, and 500Hz is recommended.

Light Length:
The length of the longest single light in parallel connection or sum of LED Neon Flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to minimize voltage drop?
1. Please ensure the cable length is not more than the table “Max. Cable Length” according to light length and its wire gauge.
2. Please ensure the light length is less than the cable “Max. Running Length Single-end Wiring”.

TB1313 Top Bend LED Neon Flex single end wiring 1
TB1313 Top Bend LED Neon Flex single end wiring 2

2. Double-end Wiring:

The below wiring diagram with double-end wiring to run length longer than the max running length for single-end wiring but less than twice the value.

Please ensure the polarity connection is correct on both ends, and a short circuit might occur if powering the light from both ends with reverse polarity. It is not recommended to connect both ends of the neon flex with two separate power supplies, which would lead to overloading and overheating problems if either power supply is failed.

Light Length:
The length of the longest single light in parallel connection or sum of neon flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to Minimize Voltage Drop:
1. It is optimal to position the power supply in the middle of a single light or multiple lines in a daisy chain to keep the equivalent cable length on both ends for double-end wiring.
2. Please ensure the cable length is not more than the table “Max. Cable Length” according to half of the light length and its wire gauge.
3. Please ensure the light length is less than the table “Max. Running Length Double-end Wiring”.

TB1313 Top Bend LED Neon Flex double end wiring 1
TB1313 Top Bend LED Neon Flex double end wiring 2
TB1313 Top Bend LED Neon Flex double end wiring 3
TB1313 Top Bend LED Neon Flex double end wiring 4

Note:

1. Please go to the Download Section for more details.

2. Suggested the installation of Top Bend LED Neon Flex to be made by the manufacturer, agent, or other qualified people.

3. Please study the above specification before installation.

4. The above data is based on our standard product. Please subject to your actual product data if there is a slight difference.

5. The above schematic diagrams are from our standard product. Please subject to your existing product if there is a slight difference.

6. The LED driver wattage must be at least 1.2 times the overall wattage of the LED Flex Neon used for the power supply.

7. Do not connect the strips directly to the AC for safety.

8. Any acidic or alkaline substance is forbidden.

9. No prior notice in case this product or specification is updated.

10. Unitop reserves the final right of explanation of the above specification.

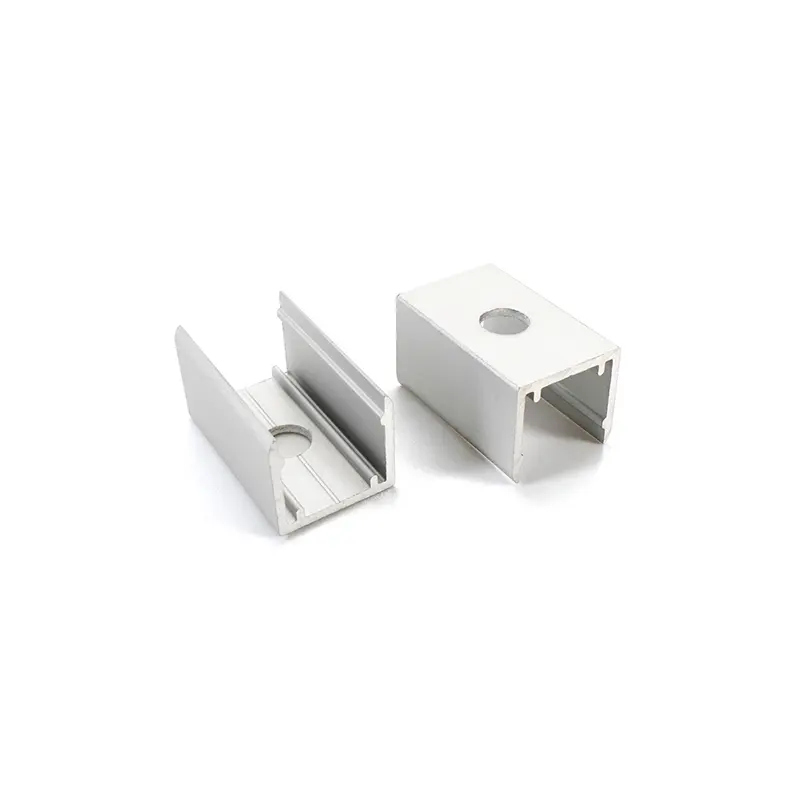

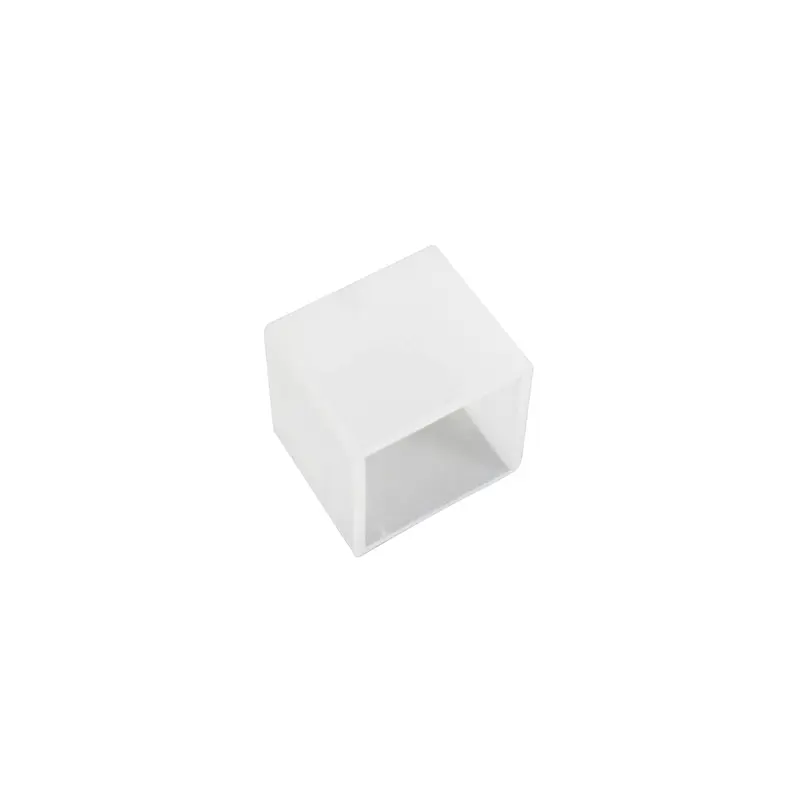

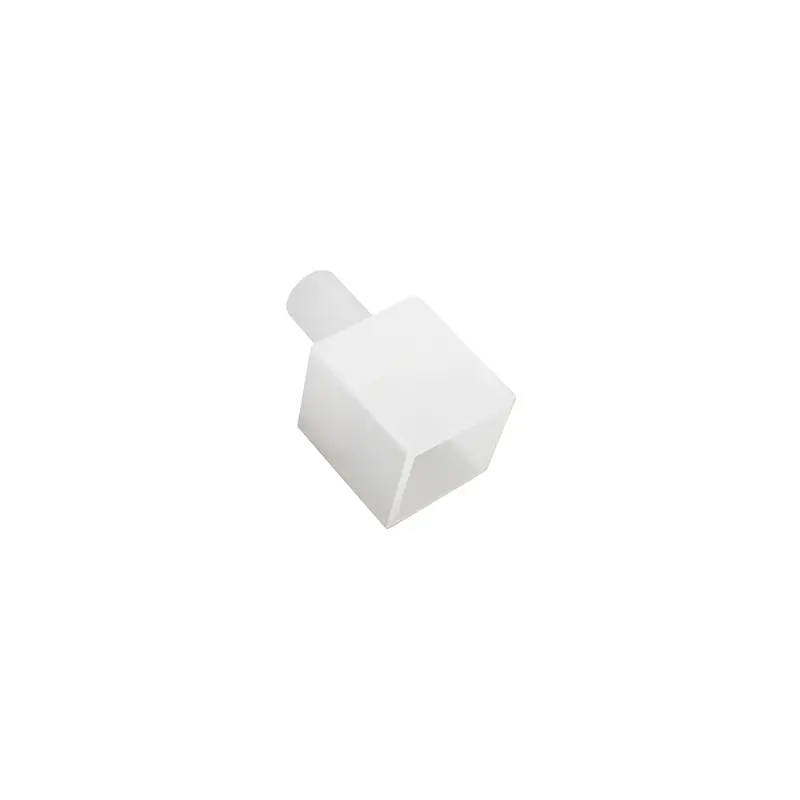

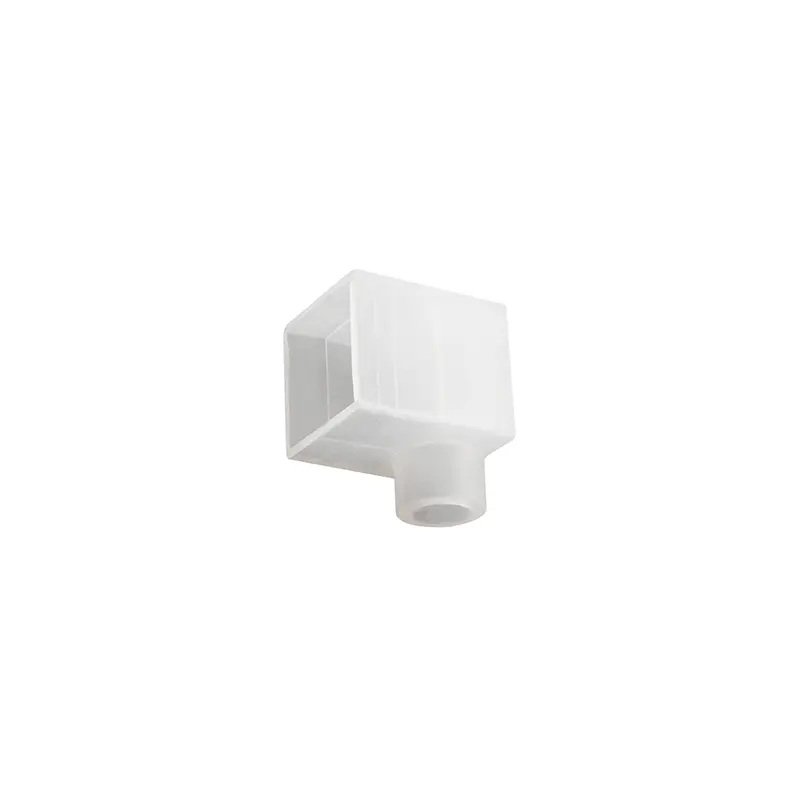

Please use the aluminum clip, profile, and end caps listed below with this Top Bend LED Neon Flex.

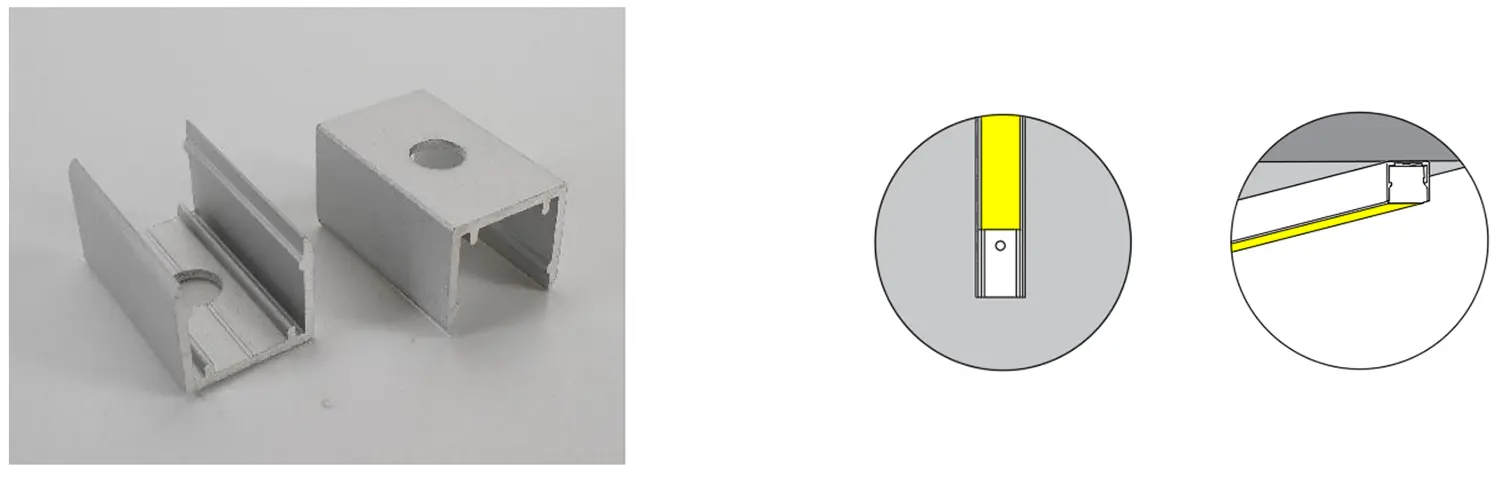

Mounting Clips Installation

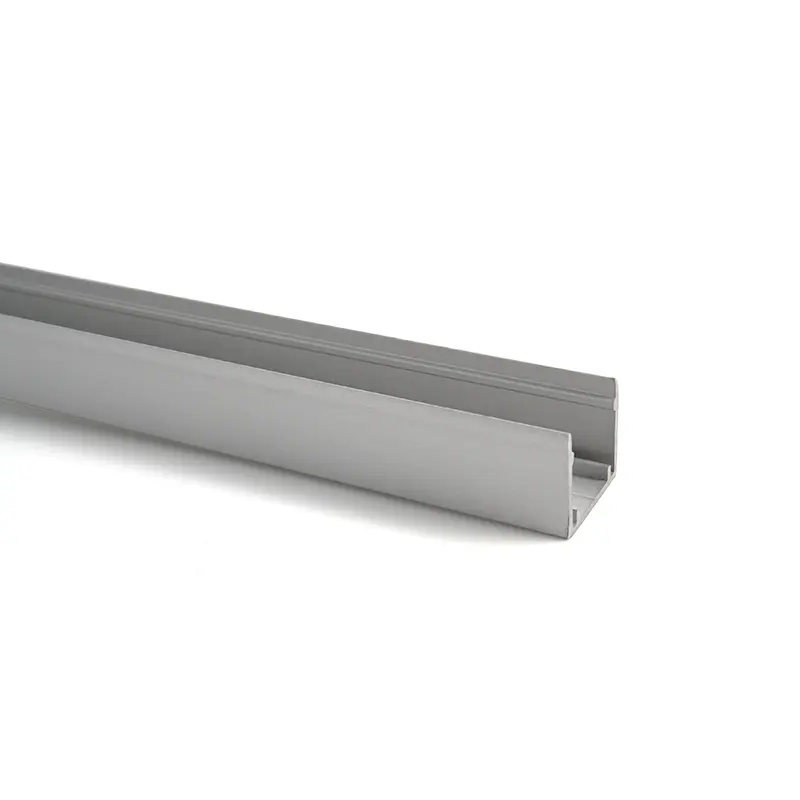

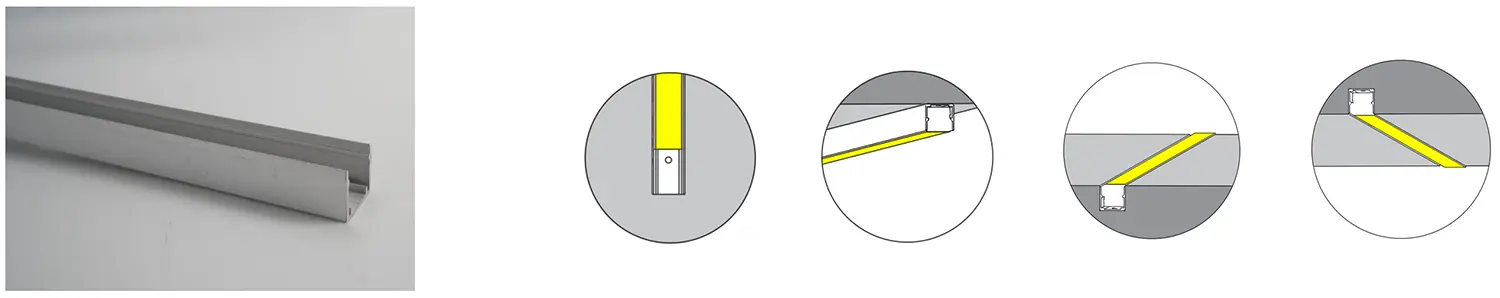

Aluminum profile installation

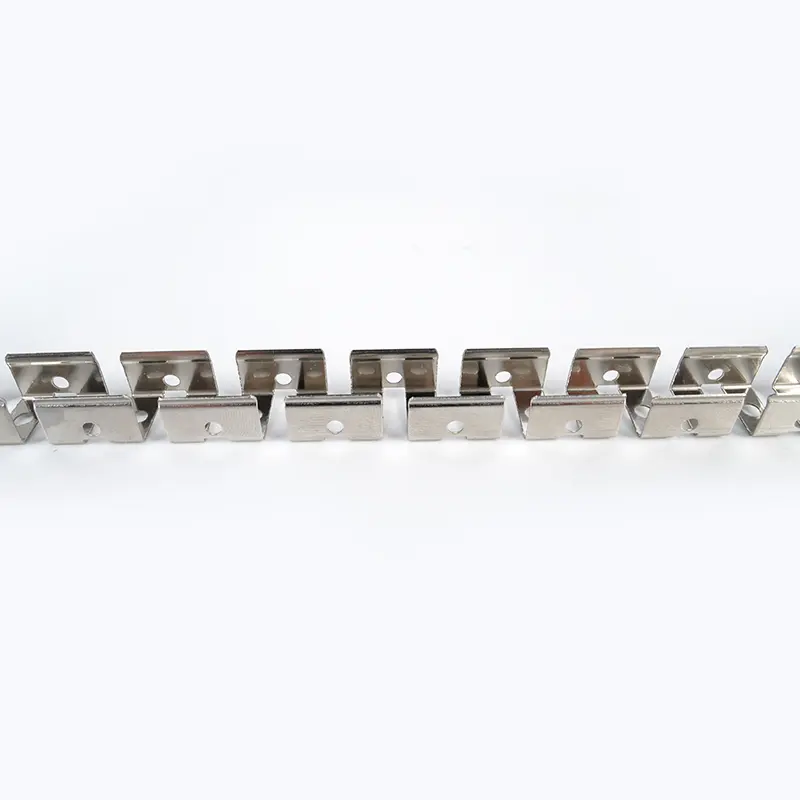

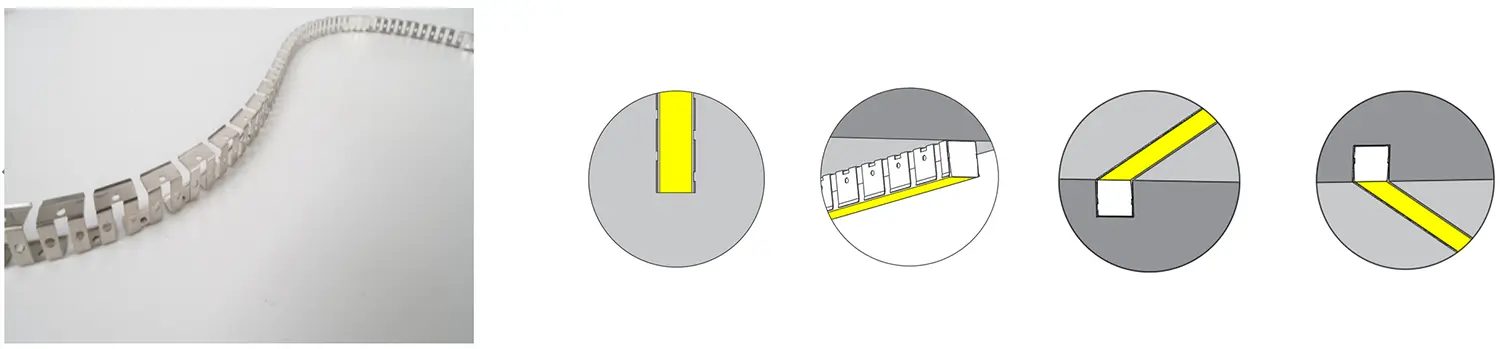

Bendable profile installation
